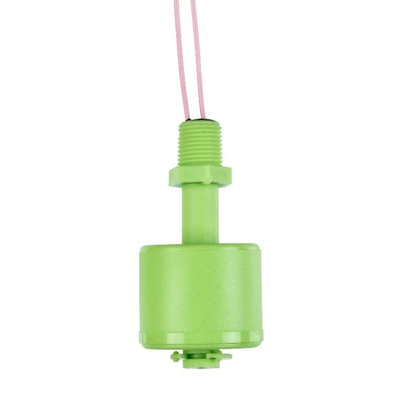

RSF57H100G1/8/RS, Sensata / Cynergy3 RSF50 Series Vertical Polyvinylidene Fluoride Float Switch, Float, 1m Cable, NO/NC, 300V ac Max,

Cynergy3 Vertical Internal Fitting Float Switch

A range of Cynergy3 single switching point, vertical fluid level switches. These level switches can be mounted on the top or bottom of the tank but requires access to the tanks interior. Vertical level switches offer long-term reliability and minimal maintenance due to the simplistic construction. The switch can be changed from normally open to normally closed simply by removing and inverting the float.

Features and Benefits

•Compact Design
•Available in Nylon, Polypropylene, PPS and PVDF
•25VA and 100VA
•1/8” NPT and M12 thread options
•Viton or Nitrile Gasket

Applications

Cynergy3 vertical float switches are suitable for a wide range of applications including
•Vending machines
•Printing systems
•Chemical dosing equipment

RSF50 Series Internal Switch Datasheet
