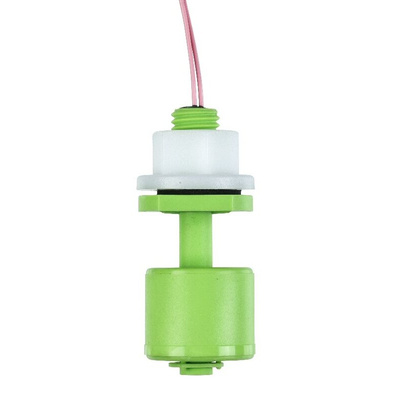

RSF57Y100GB/RS, Sensata / Cynergy3 RSF50 Series Vertical Polyvinylidene Fluoride Float Switch, Float, 1m Cable, NO/NC, 240V ac Max,

Sensata Cynergy3 Vertical Float Switch, 1m Cable Length, PVDF - RSF50 Series - RSF57Y100GB/RS

Use this vertical float switch from Sensata Cynergy3 for the accurate monitoring of liquid levels in your tanks or containers. You can install the switch on either the top or bottom of your tank for flexible installation. It has a switching voltage of 240V AC and 120V DC for use in low-power applications. For versatile use, you can easily change the switch operation from normally open to normally closed by removing and inverting the float. You can use this component in your printing systems and chemical closing equipment.

Features & Benefits

• Robust polyvinylidene fluoride construction for resistance to heat, chemicals and wear
• Wide operating temperature range between -10°C and +105°C for use in demanding environments
• Viton gasket material is resistant to chemicals, moisture and abrasion for a leakproof seal

How does a vertical float switch work?

A vertical float switch consists of a reed switch and a pivoted magnet for both NO and NC operations. Changing fluid levels open or close the reed switch at specific calibrated levels to prevent overflows and underfilling.

RSF50 Series Internal Switch Datasheet

Installation Sheet - Float Switches

Selection Guide - LEVEL SENSORS & SWITCHES
