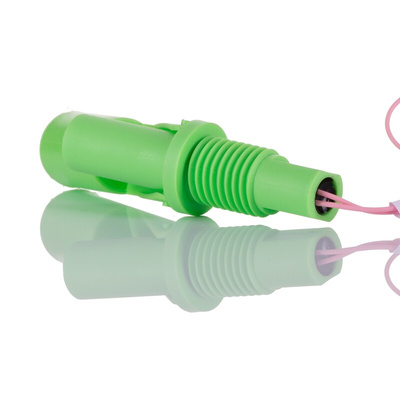

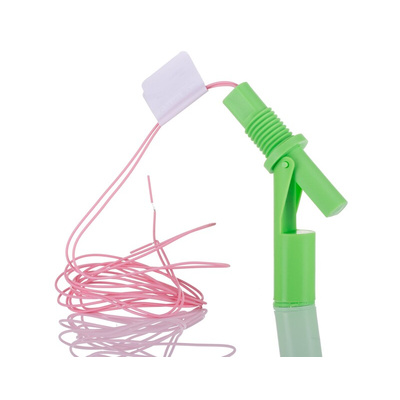

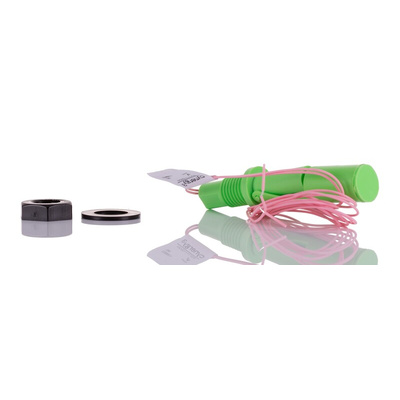

RSF77Y100GN/RS, Sensata / Cynergy3 RSF70 Series Vertical Polyvinylidene Fluoride Float Switch, Float, 1m Cable, NO/NC, 240V ac Max,

Cynergy3 Horizontal Float Switch - Compression Seal

Cynergy3 horizontal float switches are compact in size and available in a range of materials and gasket choices to suit a broad range of applications. Horizontal level switches offer long-term reliability from a simple and trusted design that requires no complex setup or calibration procedures. Switch function can be easily changed from normally open to normally closed by simply rotating through 180° during installation.

Features and Benefits

•Compression seal fitting
•Flying lead or M12 plug connection
•25VA or 100VA versions

Applications

Cynergy3 vertical float switches are suitable for a wide range of applications including
•Vending machines
•Commercial dishwashers
•Auxiliary tanks on vehicles

Sensata Cynergy3 Float Switch, 600mA Maximum Switching Current, Nitrile Gasket - RSF70 Series - RSF77Y100GN/RS

Monitor liquid levels with this float switch from Sensata Cynergy3. You can use it to control the action of a pump to help ensure your tank never runs dry. For versatility, its switch action is reversible by simply mounting the device so the float moves upward instead of in the normal downward direction. As the unit is made of PVDF, it's compatible with water as well as many chemicals and solvents. Thanks to its short length of 98mm, this float switch is a good choice for small tanks found in vending machines and commercial dishwashers.

Features & Benefits

• Designed for external mounting, so there's no need to access the inside of the tank
• Wide operating temperature range of -10°C to +105°C for use in demanding settings
• Robust nitrile seal to minimise the risk of leakage

Do I mount this float switch vertically or horizontally?

This float switch is designed for vertical mounting, so it's a good choice for tanks where the side is difficult to access.

How big of an entry hole does this float switch need?

Thanks to its small size, you only need to cut a hole with a 23mm diameter in your tank wall to install this float switch.
