RSF77Y100GV/RS, Sensata / Cynergy3 RSF70 Series Horizontal Polyvinylidene Fluoride Float Switch, Float, 1m Cable, NO/NC, 240V ac Max,

Cynergy3 Horizontal Float Switch - Compression Seal

Cynergy3 horizontal float switches are compact in size and available in a range of materials and gasket choices to suit a broad range of applications. Horizontal level switches offer long-term reliability from a simple and trusted design that requires no complex setup or calibration procedures. Switch function can be easily changed from normally open to normally closed by simply rotating through 180° during installation.

Features and Benefits

•Compression seal fitting
•Flying lead or M12 plug connection
•25VA or 100VA versions

Applications

Cynergy3 vertical float switches are suitable for a wide range of applications including
•Vending machines
•Commercial dishwashers
•Auxiliary tanks on vehicles

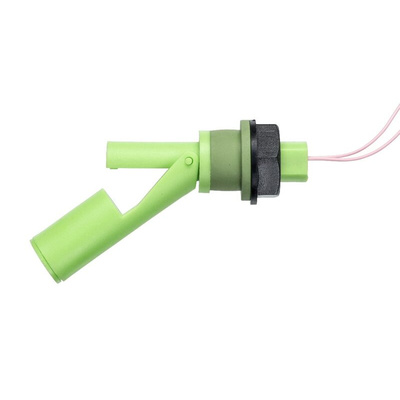

Sensata Cynergy3 Horizontal Float Switch, PVDF, 1m Cable - RSF70 Series - RSF77Y100GV/RS

You can use this Sensata Cynergy3 float switch to monitor liquid levels in your tanks. It consists of a pivoting actuator with a magnet and a reed switch with a sensor. The actuator moves as the level rises and falls, causing changes in the electromagnetic field. The sensor responds to these changes, triggering the switch's contacts to open and close. This switch is designed for mounting on the outside of a tank for situations where you don't have access to the inside of the tank. Its Viton gasket is resistant to chemicals and wear, providing a long-lasting seal to prevent leaks. A switch like this is commonly used to activate and deactivate pumps or alarms in sewage control and water treatment systems.

Features & Benefits

• Wide operating temperature range of -10°C +105°C for use in demanding environments
• PVDF (polyvinylidene fluoride) body material for durability and corrosion resistance

Can I change the switch action?

Yes, you can easily change the switch's function from normally open (NO) to normally closed (NC) by simply rotating it 180° during installation. This makes it a versatile choice.
