RSF77H100GV/RS, Sensata / Cynergy3 RSF70 Series Horizontal Polyvinylidene Fluoride Float Switch, Float, 1m Cable, NO/NC, 300V ac Max,

Cynergy3 Horizontal Float Switch - Compression Seal

Cynergy3 horizontal float switches are compact in size and available in a range of materials and gasket choices to suit a broad range of applications. Horizontal level switches offer long-term reliability from a simple and trusted design that requires no complex setup or calibration procedures. Switch function can be easily changed from normally open to normally closed by simply rotating through 180° during installation.

Features and Benefits

•Compression seal fitting
•Flying lead or M12 plug connection
•25VA or 100VA versions

Applications

Cynergy3 vertical float switches are suitable for a wide range of applications including
•Vending machines
•Commercial dishwashers
•Auxiliary tanks on vehicles

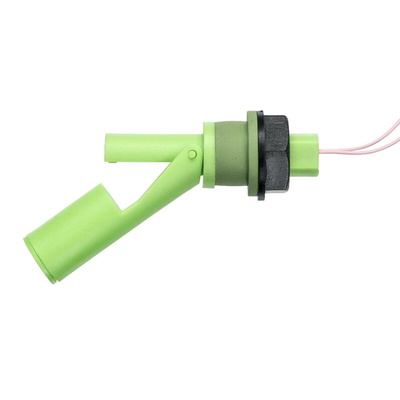

Sensata Cynergy3 Horizontal Float Switch, 1m Cable, 300V AC/DC - RSF70 Series - RSF77H100GV/RS

This horizontal float switch from Sensata Cynergy3 helps you monitor and regulate liquid levels in your industrial and commercial tanks. It's made of polyvinylidene fluoride (PVDF), meaning it's resistant to chemicals such as solvents, acids and bases. Thanks to its wide operating temperature range of -10°C to +105°C, it's suitable for use in demanding environments. A float switch like this one is frequently used in commercial dishwashers, auxiliary vehicle tanks and vending machines.

Features & Benefits

• Switch function can be changed from NO to NC by rotating the switch 180° during installation for versatility
• Viton gasket is resistant to chemicals and wear to ensure an effective, leakproof seal
• Maximum switching current of 1A for energy-efficient operation

When would I use a horizontal float switch?

A horizontal float switch is a suitable solution when access to the top or bottom of the tank is difficult or impossible. This float switch is designed for mounting from the outside of the tank wall, so there's no need to access the interior of the tank.

RSF70 Series External Switch Datasheet
