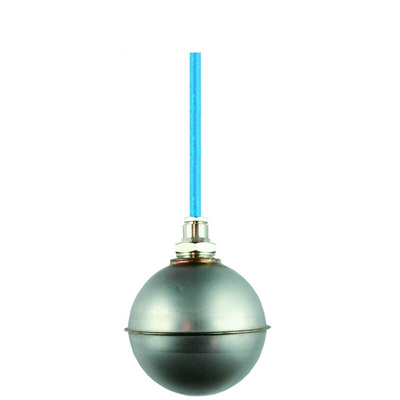

MC05A/RS, Sensata / Cynergy3 MC Series Cable Mount Stainless Steel 304 Float Switch, Float, 5m Cable, NO, 60V dc Max

High Temperature Cable Float Switch

The Cynergy3 cable float switch are manufactured from 304 AISI stainless steel and can be used to control liquids up to a temperature of +130°C. The float switch is unaffected by condensation and humidity and the cable has a protective outer sheath to protect against high temperatures.
The float switch contains a micro-switch with gold plated contacts that have a life cycle of up to 200,000 operations and is hermetical sealed inside the float for added protection. Installation can be through a side wall in the tank or from the top of the tank using a counterweight (provided).

Features and Benefits

•Up to 130 Degrees C operation
•Cable Mounted
•Polyurethane or Silicone Cable
•Supplied with Counterweight

Sensata Cynergy3 Float Switch, 250mA Maximum Current, 4 Bar Maximum Pressure - MC Series - MC05A/RS

For automatic level control of hot liquids, choose this cable float switch from Sensata Cynergy3. Its outer casing is made of 304-grade stainless steel for resistance to corrosion and wear, so it's durable in demanding applications. As its switching element has a long electrical lifespan of up to 200,000 operations, it's a long-lasting choice. You can conveniently choose to mount this device on the top or side of your tank, giving you flexible installation options. Its wide operating temperature range of 0°C to +80°C makes it a good choice for use in large industrial hot water tanks.

Features & Benefits

• Maximum pressure of up to 4 bar for use in low-pressure applications
• Long cable length of 5m for a flexible connection
• Maximum voltage rating of 60V DC for use in low-power systems

Can I use this float switch in a kerosene storage tank?

Yes, this float switch has a polyurethane cable that's resistant to oil and grease, so it's safe to use in harsh media such as kerosene.

MC Series Float Switch Datasheet
