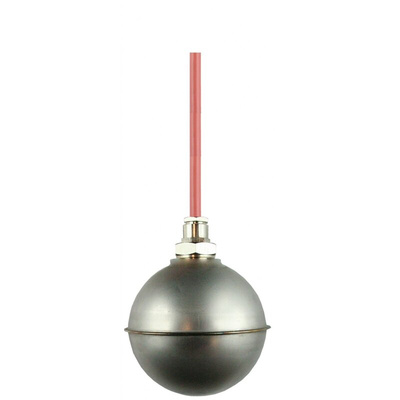

MC05B/RS, Sensata / Cynergy3 Cable Mount Stainless Steel 304 Float Switch, Float, 5m Cable, NC, 60V dc Max

High Temperature Cable Float Switch

The Cynergy3 cable float switch are manufactured from 304 AISI stainless steel and can be used to control liquids up to a temperature of +130°C. The float switch is unaffected by condensation and humidity and the cable has a protective outer sheath to protect against high temperatures.
The float switch contains a micro-switch with gold plated contacts that have a life cycle of up to 200,000 operations and is hermetical sealed inside the float for added protection. Installation can be through a side wall in the tank or from the top of the tank using a counterweight (provided).

Features and Benefits

•Up to 130 Degrees C operation
•Cable Mounted
•Polyurethane or Silicone Cable
•Supplied with Counterweight

Sensata Cynergy3 Cable Mount Float Switch, 60V DC, Stainless Steel - MC Series - MC05B/RS

Use this cable mount float switch from Sensata Cynergy3 to monitor the level of high-temperature liquids. A thermally stable silicone cable makes it suitable for use in liquids ranging in temperature from 0°C to +80°C. The micro switch inside the float is hermetically sealed for protection against moisture and contaminants, helping to ensure optimal performance. Its contacts are gold-plated for high conductivity and corrosion resistance, giving you a reliable connection. You can use this float switch with a PLC (programmable logic controller) or other low-power electronic devices for enhanced control over the liquid levels in your tank.

Features & Benefits

• Designed for side or top mounting for flexible installation
• Robust electrical life of 200,000 operations for long-lasting performance
• Cable includes an earth wire for enhanced electrical safety

Is this float switch suitable for use in acidic substances?

Yes, the stainless steel construction of this float switch makes it compatible with acidic liquids, like citric acid and vinegar. This makes it a good choice for applications such as monitoring levels of concentrated fruit juices in the beverage processing industry.

MC Series Float Switch Datasheet
