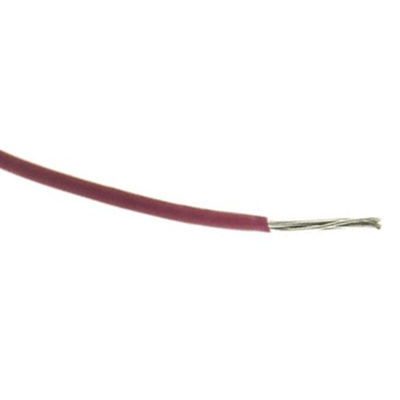

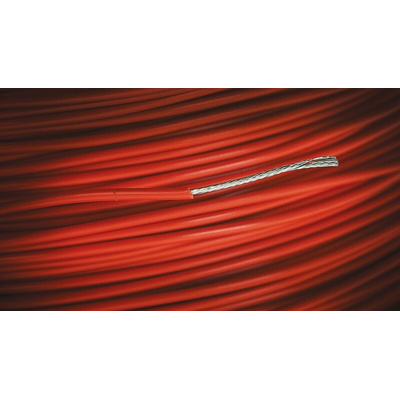

3053 OR001, Alpha Wire Orange 0.51 mm² Hook Up Wire, 20 AWG, 10/0.25 mm, 305m, PVC Insulation

Belden Alpha Wire Hook Up Wire, 300 V, PVC

When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire from Belden as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 300 V PVC hook up wire can be used in temperatures ranging from -40°C to +105°C depending on the application.

Features and Benefits:

• Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments

• Colour-coded insulation for easy circuit identification

• Easy to handle, strip and terminate

• PVC insulation

• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)

Applications:

Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.

Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.

Standards

UL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1

Belden Alpha Wire Hook Up Wire, 20 AWG, Premium Series– 3053

Optimise electrical signal transmission for your equipment and systems with this 3053 Hook Up Wire from Belden Alpha Wire.
Alpha 3053 wire uses tinned copper conductors which defend against corrosion and offer better protection in hot and humid environments. It can be used within a large temperature range of -40 to 105°C, making it a versatile choice. This unit has a maximum pull tension of 7.9lbs. The voltage rating is 300 V.

Features and Benefits:

• PVC insulation provides abrasion and flame resistance for enhanced durability
• Offers easy stripping, handling, and termination
• Colour coded sheaths ensure immediate identification

Applications:

Control cabinets
Food industry
Construction equipment

Is the 3053 wire flexible?

This unit has a bend radius of 10x the cable diameter, so it offers excellent flexibility.
