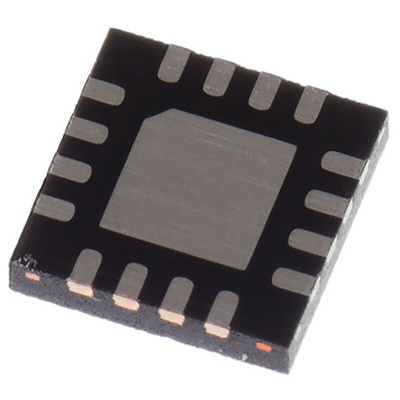

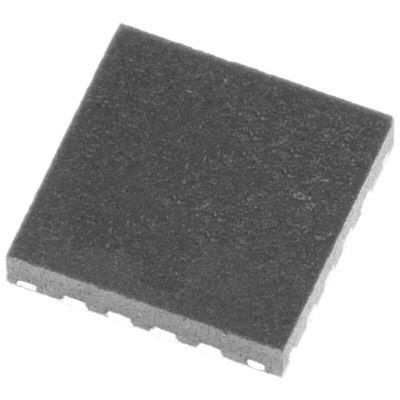

CY8CMBR3108-LQXI Cypress Semiconductor, CY8CMBR3 Capacitive, 300mm 1.71 V to 5.5 V 16-Pin QFN

1242974
Номер производителя: CY8CMBR3108-LQXIПроизводитель: Cypress Semiconductor
Цена за шт. (норма упаковки 5 шт)
576.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

CapSense® Touch Controllers, Cypress Semiconductor

A range of Programmable System-on-chip (PSoC®) products from Cypress Semiconductor incorporating analogue sub-systems with capacitive sensing hardware. These configurable devices include an on-board MCU and are aimed primarily at capacitive touch screen applications.

Register-configurable CapSense Express controller
No firmware development required
Patented CSD sensing algorithm
High sensitivity (0.1 pF)
Overlay thickness of up to 15 mm for glass and 5 mm for plastic
Proximity solutions
Sensitivity up to 2 fF per count
Best-in-class >100:1 SNR performance
Superior noise-immunity performance against conducted and radiated noise
Ultra-low radiated emissions
SmartSense Auto-tuning
Sets and maintains optimal sensor performance during run time
Eliminates manual tuning during development and production
Low-power CapSense
Average current consumption of 22 μA per sensor at 120-ms refresh interval
Wide parasitic capacitance (CP) range: 5–45 pF
Advanced user interface features
Liquid tolerance
User-configurable LED brightness for visual touch feedback
Up to eight high-sink current GPOs to drive LEDs
Buzzer signal output for audible touch feedback
Flanking Sensor Suppression (FSS) to eliminate false touches in closely spaced buttons
Analog voltage output
Attention line interrupt to the host to indicate any change in sensor status

Touch Screen Controllers

Высота:
0.55мм
Длина:
3мм
Измеряемое расстояние:
300мм
Количество контактов:
16
Максимальное выходное напряжение:
0.6 (Низкий уровень) В
Максимальный выходной ток:
85мА
Максимальный ток питания:
25 мА
Напряжение питания - максимальное:
5.5 В
Напряжение питания - минимальное:
1.71 В
Рабочая температура - максимальная:
+85 °C
Рабочая температура - минимальная:
-40 °C
Размеры:
3 x 3 x 0.55мм
Режим переключения:
Аналоговый
Серия:
CY8CMBR3
Тип выхода:
Open Drain
Тип датчика:
Емкостный
Тип монтажа:
Поверхностное крепление
Тип упаковки:
QFN
Ширина:
3мм
