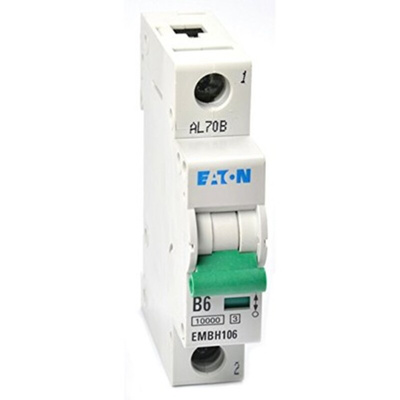

EMBH106, Eaton MEMShield MCB, 1P, 6A Curve B, 230V AC, 48V DC, 10 kA Breaking Capacity

Eaton MCB, Din Rail Mount Type, Toggle Switch Reset Actuator - MEMShield Series - EMBH106

If you're looking to step up the safety of your commercial and domestic electrical networks, reach for this MCB from Eaton. It disconnects power feeds when faults occur to protect equipment and prevent injuries. For versatility, you can use the device with comb or pin busbars. This modular unit pairs with other components, such as RCBOs and isolators, for complete installation protection. Simply pop it onto a DIN rail for fuss-free mounting that saves space in your enclosure.

Features & Benefits

• Small size of 18 (L) x 75 (W) x 80mm (D) takes up little room on a densely packed DIN rail
• Toggle switch to easily reset the device after trips
• Contact position indicator lets you know when circuits are live, boosting safety

How do I terminate conductors when using this MCB?

Box clamp terminals make wiring a piece of cake – just insert your stranded, ferruled or solid conductor. A spring mechanism keeps it firmly in place to help prevent accidental disconnections and service delays.

Is it safe to handle this MCB when it's connected?

Yes, the IP20-rated unit protects against objects larger than 12mm, so it's finger-proof.

Note

Eaton formerly known as Moeller
