EMBH132R30C ERBM-32/1/B/003-A, Eaton RCBO, 32A Current Rating, 1P Poles, 30mA Trip Sensitivity, Type B, MEMShield Range, Автоматический выключатель

Type B & C MCBs

Professional range of Eaton Memshield miniature circuit breakers. The MCBs are designed to deliver safe, reliable and high performance protection on electrical power distribution systems.

Complies with BS EN 60898
Accept cable up to 25mm²
Thermal/magnetic operation
Positive contact indication (red-on, green-off)
1 or 3 pole
Memshield 3 Blanking Module - 124-3030

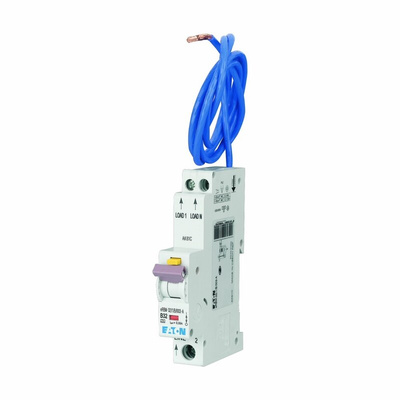

Eaton Residual Current Circuit Breaker With Overcurrent Protection, 1 Pole - EMBH series - eRBM-32/1/B/003-A

Protect people and equipment from hazardous electrical faults with Eaton's high-performance circuit breaker. This RCBO (residual current-operated circuit breaker with overcurrent protection) is highly sensitive to overloads, short circuits and earth leaks. It trips instantly when the current is between three and five times higher than its 32A rating. A simple red and green indicator clearly shows the status of the circuit breaker, and a toggle switch makes it quick to reset.

• DIN rail mounting for quick and easy installation
• Trip sensitivity of 30mA for instant circuit breaking
• Accepts standard cables up to 25mm² for straightforward wiring

Is this circuit breaker suitable for use in industrial installation?

Yes, it's suitable for high voltage ratings of 230V AC and 240V AC, so it can be used in a wide range of industrial and commercial settings.

What dimensions does this RCBO have?

This compact circuit breaker measures 17.7mm in length, 76mm in width and 102mm in depth, so it won't take up much space in your enclosure.

A

Note

Eaton formerly known as Moeller

Memshield
