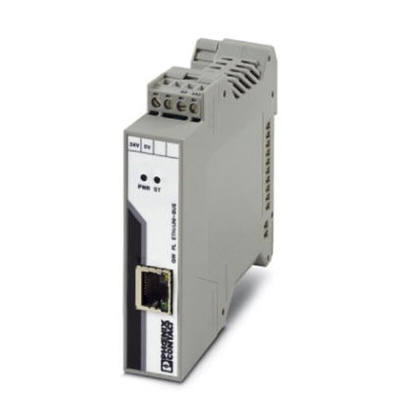

Phoenix Contact PLC Expansion Module, DIN Rail Mounting, 24 to 30V DC Voltage Category - GW PL ETH/UNI-BUS - 2702233

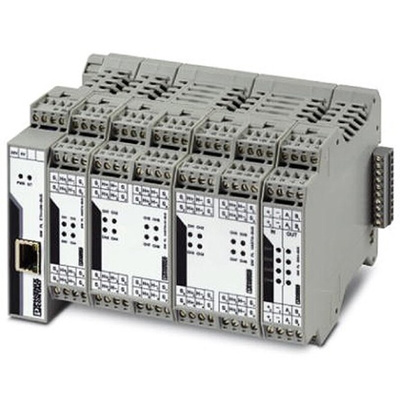

Monitor multiple devices in your control processes with this PLC expansion module from Phoenix Contact. It works by selecting digital input signals from your field equipment and transmitting them to the next stage in your network for parameter analysis and monitoring. The component's RJ45 port means it's Ethernet-compatible, so you can easily transfer data across devices on your LAN. As it can support up to five modules, it's suitable for use as a head station in large automation applications.
For versatility, this unit is compatible with Modbus/TCP, HART and PROFINET communication protocols. A green LED indicator makes it easy to troubleshoot for maximum productivity. Thanks to its compact dimensions of 114.5 (H) x 22.5 (W) x 99mm (D), it's suitable for installation in tight spaces. You can use this component in manufacturing and automation applications.
Features & Benefits
• IP20 rating indicates it's touch-proof and protected against objects larger than 12mm in size
• Wide operating temperature range between -40°C and +70°C for use in challenging environments
• Designed for DIN rail mounting for ease of installation
• Typical current consumption of 46mA for energy-efficient operation
Phoenix Contact
Техническая спецификацияDatasheet
Application Sheet - GW PL Eth/Uni-Bus With Profinet & PC Worx
Instruction Sheet - 2702233
Line Drawing - 2702233
Manual - GW PL ETH/...-BUS
Brochure - Industrial Ethernet
