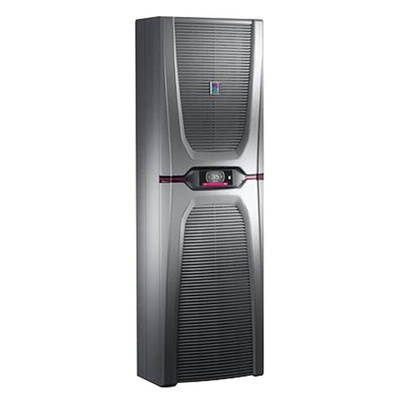

3186930, Rittal Blue e+ Series Air Conditioning Unit, 2000W, 110 → 240V ac, 1250m³/h, 1600 x 450 x 294mm, Холодильный агрегат

Side air conditioners Blue e+ - Rittal

Thanks to their revolutionary energy efficiency, Rittal Blue e+ air conditioners for enclosures are the most efficient in the world.

The hybrid technology that equips them allows them to achieve energy savings of up to 75% thanks to :
• An integrated heat pipe for passive cooling
• An active refrigerant circuit with an inverter that regulates the components (e.g. compressor, fans) according to the cooling requirements and guarantees less temperature fluctuations in the enclosure. This guarantees a longer service life for the components it integrates.
Blue e+ air conditioners offer maximum flexibility with their multi-voltage capability. They are also very easy to use thanks to their touch screen and intelligent interfaces.
The mounting cut-outs are identical regardless of the mounting position (on-wall, partially recessed, recessed) for 4 cooling output categories.
Material: sheet steel RAL7035 - Degree of protection internal circuit IP55

Composition of the delivery:

• Nano-coated condenser
• Integral electric condensate evaporation
• Assembly parts
• Fully wired ready for connection (plug-in terminal strip)

Temperature range

Storage temperature: -40 °C...+70 °C
Operating temperature : (environment): -20 °C...+60 °C
Setpoint temperature setting range: +20 °C...+50 °C

Standards

EN 14511, IEC 60 529

Approvals

UL/cUL – UL/cUL-FTTA – TÜV – EAC (3186.9xx  3189.9xx)
UL/cUL – EAC (3186.6xx  3189.6xx)

Rittal Air Conditioning Unit, Wall Mounting, +20°C to +50°C Temperature Setting Range - Blue e+ Series - 3186930

For effective cooling in your industrial settings, choose this air conditioning unit from Rittal. It features an innovative hybrid technology that combines active cooling via a compressor with passive cooling through an integrated heat pipe, giving you up to 75% in energy savings. Thanks to its sheet steel housing, this air conditioner is resistant to impact and corrosion, making it suitable for use in harsh environments.

Features & Benefits

• Internal circuit has an IP55 rating for protection against limited amounts of dust and low-pressure water jets
• Air throughput of 1250m³/h for powerful cooling
• Wide operating temperature range of -20°C to +60°C for use in demanding conditions

Applications

• Server rooms
• Chemical laboratories
• Power transmission systems

What temperatures can I set this air conditioning unit to?

This air conditioning unit has a broad temperature setting range of +20°C to +50°C, making it a versatile choice.
