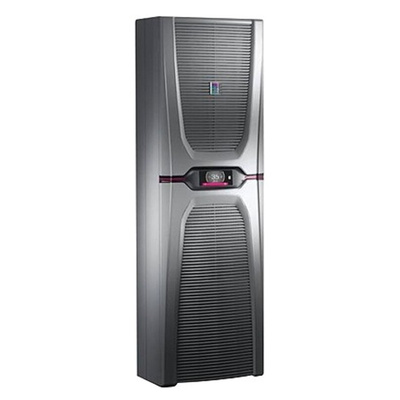

3188940, Rittal Blue e+ Series Air Conditioning Unit, 4200W, 380 → 480V ac, 2300m³/h, 1600 x 450 x 393mm, Холодильный агрегат

Side air conditioners Blue e+ - Rittal

Thanks to their revolutionary energy efficiency, Rittal Blue e+ air conditioners for enclosures are the most efficient in the world.

The hybrid technology that equips them allows them to achieve energy savings of up to 75% thanks to :
• An integrated heat pipe for passive cooling
• An active refrigerant circuit with an inverter that regulates the components (e.g. compressor, fans) according to the cooling requirements and guarantees less temperature fluctuations in the enclosure. This guarantees a longer service life for the components it integrates.
Blue e+ air conditioners offer maximum flexibility with their multi-voltage capability. They are also very easy to use thanks to their touch screen and intelligent interfaces.
The mounting cut-outs are identical regardless of the mounting position (on-wall, partially recessed, recessed) for 4 cooling output categories.
Material: sheet steel RAL7035 - Degree of protection internal circuit IP55

Composition of the delivery:

• Nano-coated condenser
• Integral electric condensate evaporation
• Assembly parts
• Fully wired ready for connection (plug-in terminal strip)

Temperature range

Storage temperature: -40 °C...+70 °C
Operating temperature : (environment): -20 °C...+60 °C
Setpoint temperature setting range: +20 °C...+50 °C

Standards

EN 14511, IEC 60 529

Approvals

UL/cUL – UL/cUL-FTTA – TÜV – EAC (3186.9xx  3189.9xx)
UL/cUL – EAC (3186.6xx  3189.6xx)

Rittal Air Conditioning Unit, Sheet Steel Housing, 1.3kW Rated Power Input - Blue e+ Series - 3188940

Control thermal conditions in your workplace with this air conditioning unit from Rittal. It delivers powerful cooling thanks to its external air throughput of 2300m³/h, helping to prevent your equipment from overheating. The unit is IoT-compatible, meaning that you can control it from your computer or mobile device. Its heat pipe technology enables passive cooling for enhanced energy efficiency.

Features & Benefits

• Sheet steel housing for resistance to corrosion and impact
• Touch display interface for ease of operation
• Internal circuit has an IP55 rating for protection against limited amounts of dust and low-pressure water jets

Applications

• Telecommunications industry
• Power transmission and distribution systems

What's the operating temperature range of this air conditioning unit?

This unit has a broad operating temperature range of -20°C to +60°C, making it suitable for use in demanding conditions.
