RS PRO Aluminium Flat Bar, 50mm W, 6mm H, 1m L, Лист

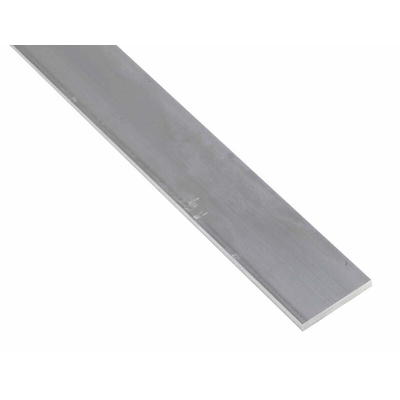

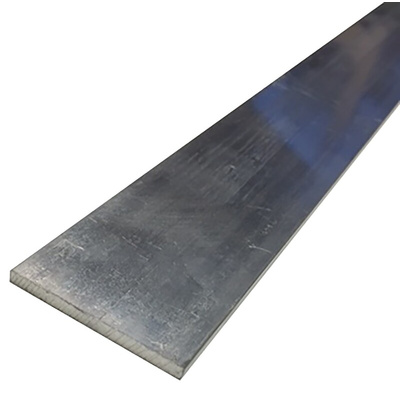

RS PRO 6082-T6 Aluminum Flat Bar, 50 mm x 6 mm x 1 m

These flat aluminium bars are widely used in construction and manufacturing industries because of their stability and versatility.

Produced from the medium-strength aluminium alloy 6082, the bars have excellent corrosion resistance, making them suitable for long-term exposure outdoors. The bars have a tensile strength of 310 Min MPA, so they can take a significant load or stress before they stretch or break. The aluminium alloy is also an excellent heat and electricity conductor and has a thermal conductivity of 180 W/mk.

Each flat bar carries the RoHS (Restriction of Hazardous Substances) certificate of compliance and has been thoroughly quality-tested as part of the RS PRO range. The bars come in 1-metre lengths with a width of 50 mm and thickness of 6 mm. Their flat narrow shape makes them a versatile choice for machining applications.

Features and Benefits

• Dimensions of 1000 mm (L) x 50 mm (W)
• Thickness of 6 mm
• Density of 2.70 g/cm³
• Tensile strength equivalent to 310 Min MPa
• Thermal conductivity of 180 W/m.K
• Hardness of 95 HB

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet
