RS PRO 6082-T6 Aluminum Flat Bar, 50mm x 12mm x 1m, Лист

6082 T6 Aluminium Solid Flat Bars

RS Pro 6082 T6 Aluminium flat bars are solid bars that are available in various widths. The flat bars are used in highly stressed applications, trusses, bridges, cranes, beer-barrels, milk churns and transport applications.

FEATURES and BENEFITS:

Aluminium flat bars
6082 T6 Aluminium
Formed as solid flat bars
Various widths available
Various thicknesses available
Various lengths available

APPLICATIONS:

Highly stressed applications
Transport applications
Trusses
Bridges
Cranes
Beer-barrels
Milk churns

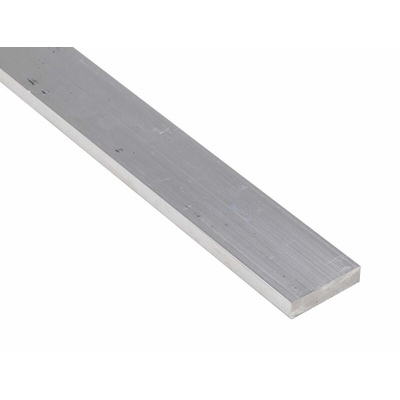

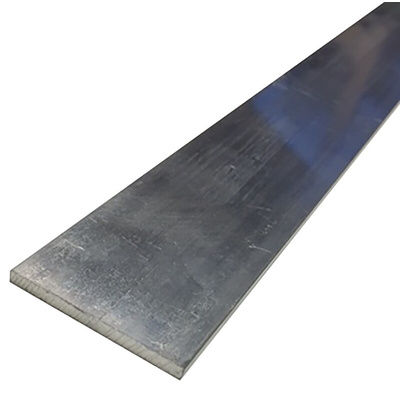

RS PRO 6082-T6 Aluminum Flat Bar, 50 mm x 12 mm x 1 m

Versatile and strong, this flat aluminium bar from the RS PRO range is commonly used in the manufacturing and construction industries.

It's a useful component for high-stress applications as it has a tensile strength of 310 MPa, which means it can bear a significant load before it warps or breaks. The aluminium bar is made from the medium-strength aluminium alloy 6082 and is corrosion-resistant. This makes it suitable for both indoor and outdoor use. With a thermal conductivity of 180 W/mk, the alloy is an excellent conductor of heat and electricity.

Available in 1-metre lengths with a width of 50 mm and thickness of 12 mm, the flat narrow shape makes this a versatile choice for transport applications. The metal bar is RoHS (Restriction of Hazardous Substances) compliant and has been fully quality-tested as part of the RS PRO range.

Features and Benefits

• Dimensions of 1 m (L) x 50 mm (W)
• Thickness of 12 mm
• Density of 2.70 g/cm³
• Tensile strength equivalent to 310 Min MPa
• Thermal conductivity of 180 W/m.K
• Hardness of 95 HB

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet
