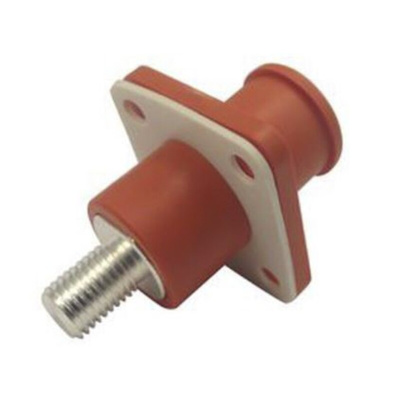

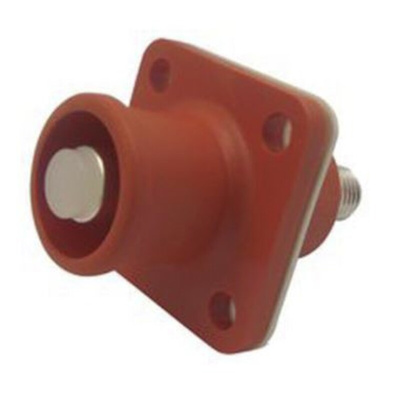

8mm SurLok Plus Receptacle for 50mm (90 Key)
From Amphenol, this SurLok Plus series receptacle is a compact and quick mating compression lug that features a panel mount flange. Robust and environmentally sealed, the receptacle is field installable and highly reliable.
With R4 Radsock technology, the connection assures a high tensile strength connection with a highly conductive surface area.
The receptacle has a 8mm pin diameter and is designed to terminate to 50mm² wires.
Features and Benefits
• Touch Proof
• Spring Locking
• Keyed to prevent mismating (90 degree)
• IP67
• Flammability rating of UL 94-V0
Applications
SurLok Plus series connectors are often used in Electric Vehicle applications (EV/HEV) and rail mass transit. The series also has applications in process control, medical and BMS/Energy storage.
Amphenol SurLok Plus Range
Техническая спецификацияDatasheet
Detail drawing
