Cypress Semiconductor 3.0 HUB Reference Design CY4609

CY4609 HX3 USB 3.0 Hub Reference Design Kit, Cypress Semiconductor

The CY4609 kit is for the evaluation of the USB-IF Certified CYUSB330x family of HX3 USB 3.0 hub controllers. The kit can be used as a reference design for a standalone USB 3.0 hub application. Included is the Blaster Plus software utility, a GUI-based Cypress software tool to change the configuration parameters of HX3.

Supports Battery Charging v1.2
Supports Ghost Charging
Configure HX3 using I²C EEPROM or I²C slave modes
Supports Ganged Downstream port Power Control
68-pin QFN package

Kit Contents

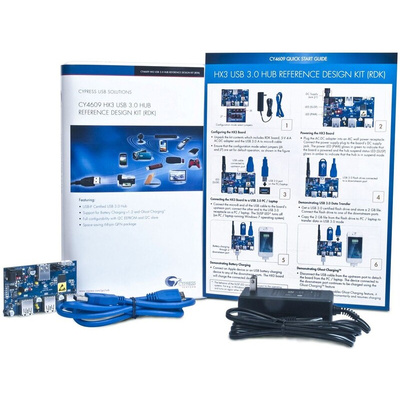

CY4609 HX3 USB 3.0 Hub Development board
USB 3.0 Type-A to Micro-B type cable
Power adapter 5 V at 4A max.
Quick start guide

USB (Universal Serial Bus), Cypress Semiconductor

USB is a cable bus supporting data exchange between a host computer and a wide range of simultaneously accessible peripherals. There is a differential signal data interface for transmit and receive communication path. The bus includes power at 5 Volts.
