CY4500 EZ-PD Protocol Analyzer, Cypress Semiconductor
The CY4500 EZ-PD Protocol Analyzer supports protocol analysis and decoding of the USB-PD (Power Delivery) and USB Type-C specifications packets on the Configuration Channel lines. The analyzer allows debugging of the USB Power Delivery communication. The CY4500 acts as a pass-through for VBUS, VCONN, USB 3.1, USB 2.0 and USB-PD traffic. The cypress.com website includes a free Windows-based GUI software (EZ-PD Analyzer Utility) that can be used to decode the USB-PD messages in real time.
VBUS Voltage and Current monitoring
Message ID based triggering
Debug headers for Configuration Channel, VBUS and SBU
Firmware upgradable for future updates

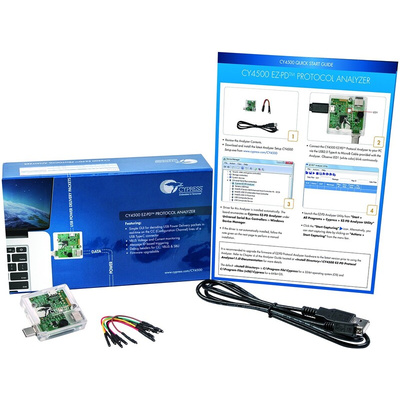

Kit Contents
EZ-PD Protocol Analyzer Hardware
USB 2.0 Type-A to Micro-B Cable
Jumper Wires (6)
Quick Start Guide
USB (Universal Serial Bus), Cypress Semiconductor
USB is a cable bus supporting data exchange between a host computer and a wide range of simultaneously accessible peripherals. There is a differential signal data interface for transmit and receive communication path. The bus includes power at 5 Volts.
