CY8CKIT-037 PSoC 4 Motor Control Evaluation Kit, Cypress

The CY8CKIT-037 kit is used in conjunction with a PSoC 4 CY8CKIT-042 Pioneer kit (RS 124-4183) to evaluate DC motor control applications. The kit supports BLDC (BrushLess Direct Current) motors, PMSM (Permanent Magnetic Synchronous Motors) and Stepper motors. PSoC Creator IDE allows concurrent hardware and software design.

Example Projects

• Single-shunt FOC BLDC Motor Control
• Sensorless FOC BLDC Motor Control
• Sensored BLDC Motor Control
• Sensorless BLDC Motor Control
• Stepper Motor Control

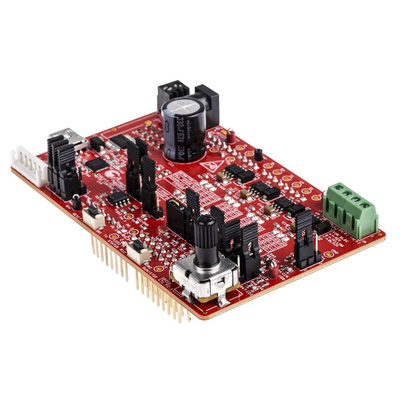

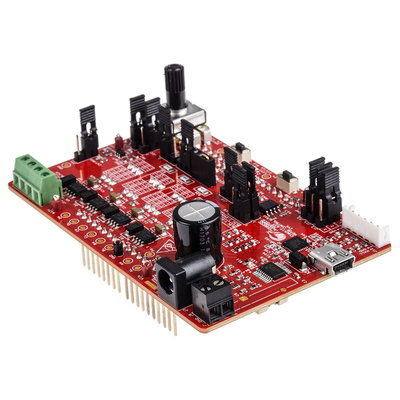

CY8CKIT-037 Board Features

• 4 x IR2101 High Side/Low Side MOSFET gate drivers
• 8 x IRFU3607 power MOSFETs configured as 4 x Half-Bridges
• Phase current detecting and processing circuit
• Hall and Back-EMF sensing circuits
• Potentiometer for manual speed control
• Reset and Run/Stop pushbuttons
• Status LED
• CY7C65213 USB-UART Bridge controller
• Power supply input protection circuit
• LM5005MHX +12V @ 600mA DC/DC switching regulator
• miniUSB socket for PC connection
• Screw connector for motor windings
• Screw connector for 24-48Vdc power supply
• Barrel jack for 12-24V @ 2A power supply
• Arduino-format Shield header for CY8CKIT-042 connection
• Test points

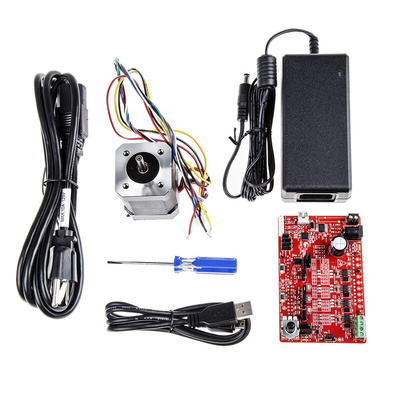

Supplied with

24V @ 2A Power supply adapter, BLDC motor (BLY172S-24V-4000) with sinusoidal back-EMF, USB Type-A to mini-B Cable, Configuration jumpers, 2.5A Fuse, Screwdriver, Quick start guide
