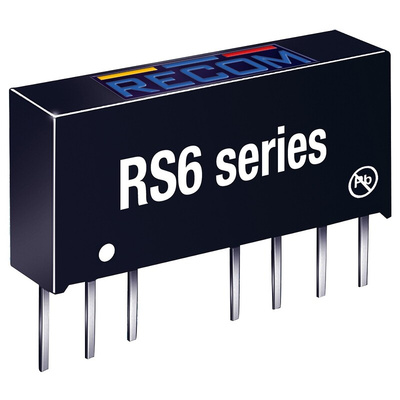

RS6-2405S, Recom RS6 DC-DC Converter, 5V dc/ 1.2A Output, 18 → 36 V dc Input, 6W, Through Hole, +75°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, 18 to 36V DC Input Voltage Range, 5V DC Output Voltage - RS6 Series - RS6-2405S

To bring your voltage supply in line with the needs of your device, reach for this DC-DC converter from RECOM. As it steps down an input voltage range between 18 and 36V DC to an output voltage of 5V DC, the high-power-density unit makes sure that the right levels reach your circuits. You can adjust the output voltage range between -8 and 10%, so it keeps up with the highs and lows of your system. Thanks to low output ripple and noise of 50mVp-p, you can rest assured that you'll get clean and clear signals.

Features & Benefits

• Mean time between failures of 1,776,000 hours for long-lasting use
• Speedy start-up time of 2ms for rapid-fire switching
• Continous short-circuit protection for electrical safety
• Performs reliably at temperatures between -40°C and +75°C

Applications

• Communications systems
• Computer peripherals
• Battery packs
• Agricultural equipment

How efficient is this converter?

Thanks to an efficiency rating of 87%, you can rest assured that this converter wastes minimal energy as heat, so runs cool.
