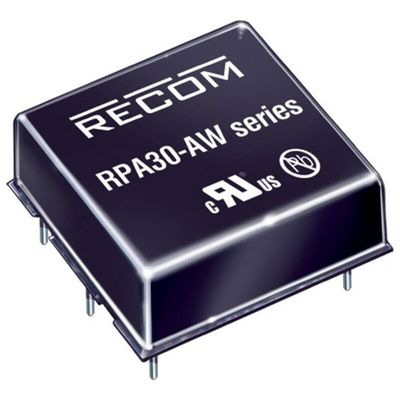

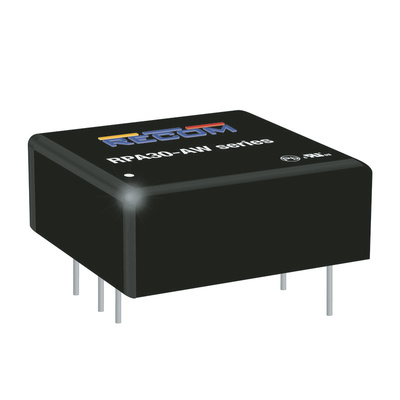

RPA30-2405SAW/P, Recom RPA30-AW DC-DC Converter, 5V dc/ 6A Output, 9 → 36 V dc Input, 30W, Through Hole, +73°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, Pi-Type Internal Input Filter, 89% Efficiency - RPA30-AW Series - RPA30-2405SAW/P

Looking for a compact power distribution solution for your PCB-linked parts? Go for this small-but-mighty DC-DC converter from RECOM. Thanks to a 30W power rating, it's just the thing for heavy-duty applications. The unit steps down 24V inputs and, through its integrated Pi-type filter, cleans out ripple to deliver a stable and noiseless 5V output. For additional safety, it puts up a 1.6kV isolation voltage barrier, ensuring you don't get caught unawares by sudden power surges. The package measures just 25.4 (L) x 25.4 (W) x 10.2mm (H) without a heatsink, so it fits right into tight setups.

Features & Benefits

• Efficiency of 89% for increased productivity and minimal energy loss
• Anodized aluminium alloy case for durability and corrosion resistance
• Continuous overvoltage and short-circuit protection to prevent damage and electric shocks
• Safe to use in a wide operating temperature range between -55°C and +125°C
• Through-hole mounting achieves a secure, vibration-proof hold on the circuit board

Applications

• Process and packaging equipment
• Robotics and automation systems
• Transportation industry

How reliable is this converter?

This unit's mean time between failures of 5,888,000 hours shows that you can depend on it for long-term performance.
