0850-0660, BARTH lococube mini-PLC Logic Module, 7 → 32 V dc Digital, PWM, Solid State, 10 x Input, 9 x Output Without, Логический модуль

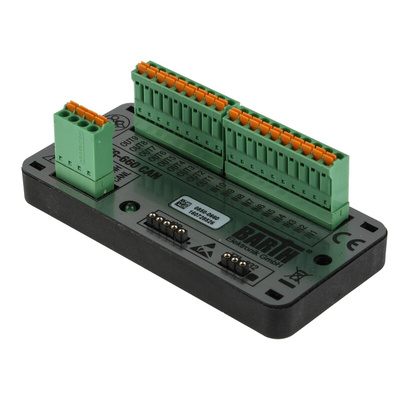

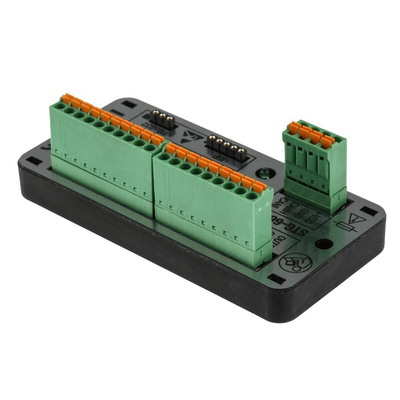

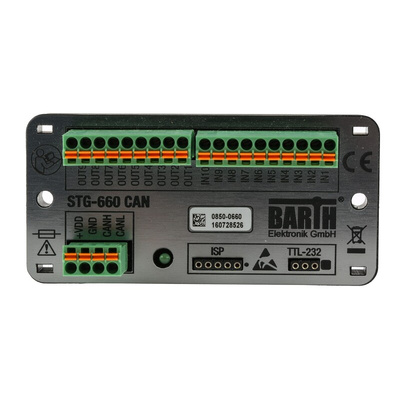

STG-660 CAN - Mini-PLC

A professional range of STG-660 CAN Mini-PLC from Barth. The STG-660 Mini-PLC has extended the established Barth CAN Mini-PLC series with an excellent open source hardware concept. These Mini-PLC’s provide hardware-oriented microcontroller programming at lowest current consumption and the well-known small form factor. Various network components can be connected to the Mini-PLC through the CAN bus, such as; displays & CAN sensors. Both inputs and outputs feature highly integrated and rugged protection circuits to operate the Mini-PLC in harsh environments. The STG-660 does not need any peripheral components to operate and all models are highly reliable and excellent quality.

Small and universal CAN Logic Controller
Programmable with all PIC18® Compiler
6 analog Inputs 0..30 VDC, 12 bit ADC
4 digital Inputs up to 10 kHz
8 Power Outputs up to 1.5 A
1 Power PWM Output 2 A/1 to 32 kHz
1 CAN Interface
Reliable Solid-State Outputs
Fail Safe Oscillator
Programmable Status LED
TTL-232/USB Connection to PC
Wide Operating Voltage Range; 7 to 32 VDC
Wide Operating Temperature Range; -40 to +60°C
Vibration resistant and rugged Sealing

Note

A product is NRND (Not Recommended for New Designs) is in production and available, with no obsolescence scheduled. However, we recommend against using these parts for new designs because there are better or more economical alternatives.
