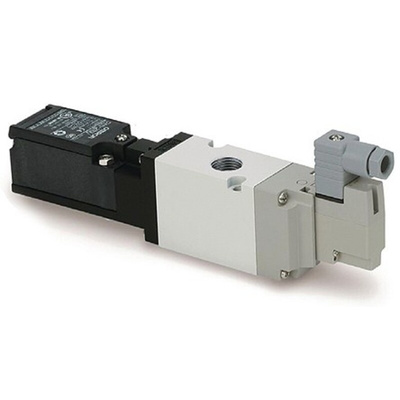

VP542-5DZ1-03F-M-X536, SMC Pneumatic Solenoid Valve - VP500 Series, Клапан

SMC ISO13849-1 Category 2 Valves

VP series valves allow safe venting of compressed air to atmosphere and can be used in category 2 safety systems conforming to ISO standard ISO13849-1. The residual pressure release valve is fitted with a limit switch enabling the valves state (energised or de-energised) to be constantly monitored. If the valve fails, the limit switch can be used to prevent operation until repairs can be carried out.

Features and Benefits

•ISO13849-1 category 2 compliant
•Fitted with limit switch for position monitoring
•LED position indicator
•Normally closed , return spring operation
•Modular fit with SMC FRL systems
•Available with external or internal pilot
•0.45W power consumption (solenoid consumption)
•Fitted with varistor voltage suppressor
•30 times/min max operating frequency
•1 time/week minimum operating frequency

Applications

The VP series valves are designed to be used as part of safety control systems where compressed air systems are being used. They are suitable for use in various industries and applications as part of a ISO13849-1 compliant safety system. Some example s of use are,
•Tyre pressure testing machinery
•Moulding machines
•Assembly machines

Note

Any of these products are component function parts to ensure safety in the control system of the machine, but are NOT certified to safety standard ISO13849-1
It is recommended that confirmation is sought from a third party certification organisation about the safety of the control system as a whole.

Datasheet
