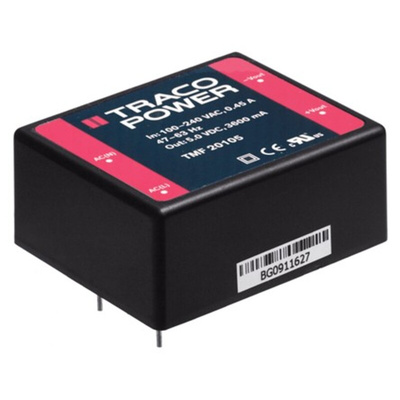

TRACOPOWER Switching Power Supply, TMF 20105, 5V dc, 3.6A, 18W, 1 Output, 120 → 370 V dc, 90 → 264 V ac, Источник питания

Traco Power Switching Power Supply, PCB Mounting, +70°C Maximum Operating Temperature - TMF Series - TMF 20105

Stabilise your circuits with this switching power supply from Traco Power. It's a versatile option that can handle both AC and DC inputs to deliver a glitch-free 5V DC output. The inner workings are fully encapsulated in non-conductive plastic housing, so you can handle it without worrying about being shocked. As this power supply is protected from short circuits, overload and overvoltage, it's a reliable option that keeps your system running like clockwork. A low weight of 100g means it's a cinch install and it won't strain your setup.

Features & Benefits

• Broad operating temperature range of -25°C to +70°C for use in harsh conditions
• Compact dimensions of 23.5 (D) x 54.7 (L) x 44.9mm (W) use minimal space on your PCB
• 4kV isolation voltage keeps the unit safe from power surges
• Leakage current of 100 μA or less for added safety

Applications

• Medical devices
• Mechanical workshops
• Factory equipment
• Industrial power supplies

What input voltages does this product accept?

This switching power supply accepts DC input voltages from 120V to 370V and AC inputs between 90V and 264V, so it suits industrial and domestic applications.
