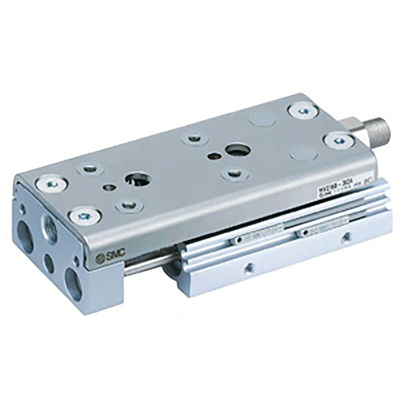

MXQ16A-125Z, SMC Slide Unit Actuator Double Action, 16mm Bore, 125mm stroke

1244584
Номер производителя: MXQ16A-125ZПроизводитель: SMC
Цена за шт.
188439.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

SMC MXQ-Z Slide Table Guided Cylinder

The MXQ-Z air slide uses one table design with a choice four body variations to provide the best possible solution for your guided actuator requirements. This next generation of MXQ slide table is manufactured using a stronger, lighter stainless steel resulting in a 22% reduction in weight. Grooves for auto-switches have been moulded into the body removing the requirement to use spacers and
A Double ported body design with porting auto-switch grooves on both sides of the body for increased mounting options during installation.

Features and Benefits

Flexible versatile design, choice of four options
Lightweight
Compact
Energy saving design (Type B)
Improved allowable kinetic energy shortens cycle times, improving connectivity
Stroke limiters prevent damage to machinery and workpieces
Central placed stroke adjusters reduce deflection
New table design easier to maintain

Applications

The MXQ-Z slide tables features and beneifits make it suitable for various applicatiosn including
Pick and Place
Precision placement of work pieces
Low Fricton Transport
Pallet and conveyor positioning
Handling Z axis
Vertical applications

Техническая спецификация
pdfDatasheet
Абсолютное максимальное давление:
1.05МПа
Вес:
1.1кг
Высота:
35мм
Давление - максимальное рабочее:
0.7 МПа
Действие:
Double
Длина:
245.5мм
Отверстие:
16мм
Порт подключения:
M5 x 0.8
Размеры:
245.5 x 65 x 35мм
Серия:
MXQA
Сила при 7 бар:
242 (In) N, 281 (Out) N
Тип демпфирования:
Каучук
Тип размера:
Стандартный
Ход:
125мм
Ширина:
65мм
