DFRobot Bluno Nano Bluetooth Development Board DFR0296

Bluno Nano Arduino

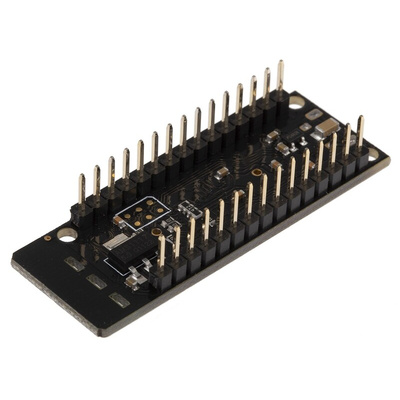

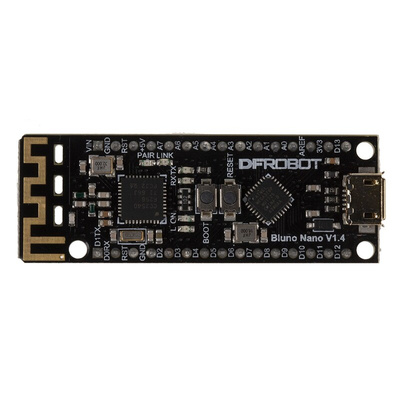

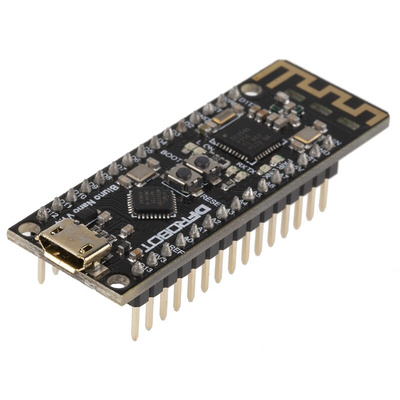

The DFRobot Bluno Nano Module is a compact, lightweight, BLE development board. It integrates Bluetooth 4.0 BLE into an Arduino Nano board and can be controlled by your phone. Bluno Nano features the TI CC2540 BT 4.0 chip on an Arduino Nano board and enables you to carry out wireless programming.
The Bluno Nano is the perfect board for use in designing smart devices and wearables, such as smart watches.

Why BLE?
Bluetooth Low Energy, referred to as BLE, is a form of Bluetooth technology which makes real-time low energy communication easy and achievable. It offers reduced power consumption and is popular in home entertainment and fitness applications.

Is Bluno Nano compatible with Arduino Uno?
Yes, Bluno is compatible with all Arduino Uno pins. Therefore if you have created a project around the Arduino Uno, the Bluno Nano can add wireless connectivity to it.

What software does the Bluno Nano use?
There is an Android and IOS compatible app available for the Bluno board. It’s an open source platform so you are able to develop your own software.

More Information:

On-board BLE chip: CC2540
Wireless Programming Via BLE
Support Bluetooth HID
Support AT command to configure the BLE
Transparent communication through Serial
Upgrade BLE firmware easily
DC Supply: USB Powered or External 7 V∼12 V dc
Microcontroller: Atmega328
Bootloader: Arduino Uno
Compatible with the Arduino Uno pin mapping
Size: 53 x 19 x 12 mm (2.09 x 0.75 x 0.47")
Weight: 20 g
