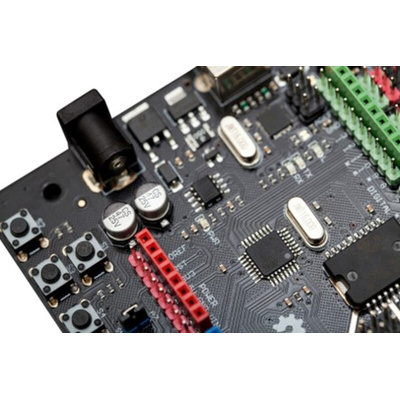

DFR0004, DFRobot Romeo, Arduino Compatible Board

Romeo Arduino Robot Control Board with Motor Driver

The first Romeo Arduino Control Board with Motor Drivers is based on the Arduino Uno with a socket to add bluetooth APC220 Radio Communication Module. Also the controller board has integrated input/output sensor pinout for connecting gravity compatible sensors and modules. The board benefits from the Arduino open source platform and includes open source codes. Suitable for Robotic applications.

Note: Bluetooth APC220 Radio Communication Module not included.

Features:
•DC Supply: USB Powered or External 7 V∼12 V dc
•DC Output: 5 V /3.3V DC and External Power Output
•Microcontroller: Atmega328
•Bootloader: Arduino Uno
•Compatible with the Arduino Uno pin mapping
•8 Channels 10-bit Analogue I/O
•USB interface
•5 key inputs
•Auto sensing/switching power input
•ICSP header for direct program download
•Serial Interface TTL Level
•Support Male and Female Pin Header
•Integrated sockets for APC220 RF Module and DF-Bluetooth Module
•Three I2C Interface Pin Sets(two 90°pin headers)

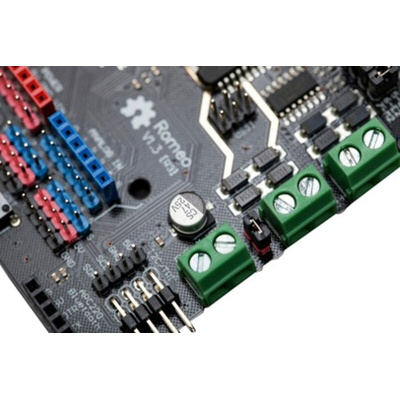

•2 way Motor Driver with 2A maximum current
•Gold plated printed circuit board
•Size: 90 x 80 x 14 mm(3.54"x3.15"x0.55")
•Weight: 60 g
