DFR0225, DFRobot Romeo V2, Arduino Compatible Board

Romeo V2 Arduino Robot Board with Motor Driver

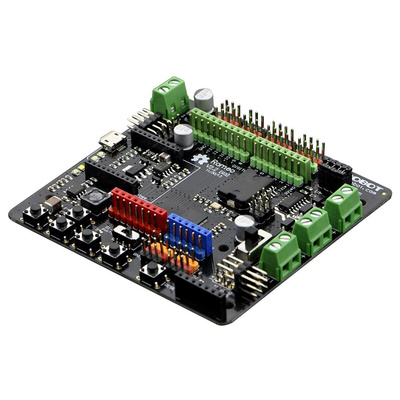

Romeo V2 is an Arduino Robot Board (Arduino Leonardo) with Motor Driver for Robotic applications.
The controller board behaves like Arduino Leonardo and is based on the ATmega32u4 chip. Also the board can be program directly from the Arduino IDE 1.0.1 or a later version making it easy to use.

Features:
•Wide operating input voltage
•Directly support XBee and XBee form factor WiFi, bluetooth and RF modules
•ON/ OFF switch to control the system power from external motor power
•3 Digital I/O extensions (D14-D16)

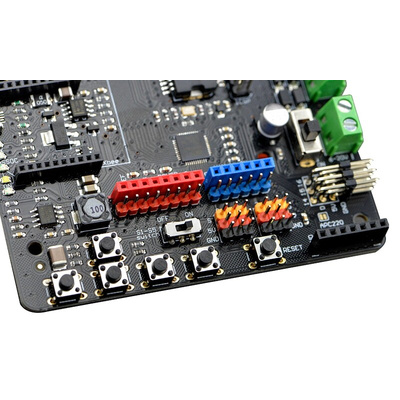

•S1 - S5 switch replace jump cap, allows free use for the GPIO.
•Micro USB instead of A-B USB connector
•Analogue sensor extension port: Orange for Signal, Red for Vcc, Black for GND

Romeo family

Romeo V2 Arduino Robotics Board Manual
