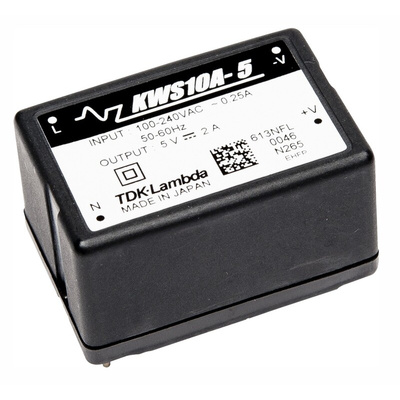

TDK-Lambda Switching Power Supply, KWS10A-5, 5V dc, 2A, 10W, 1 Output, 120 → 370 V dc, 85 → 265 V ac

TDK-Lambda, PCB Mount, Encapsulated, Switch Mode AC-DC Power Supply - KW Series

TDk Lambda KW series of encapsulated PCB power supplies off a compact solution to a wide range of applications. The compact footprint of the KW series makes it suitable for space-critical applications without external components. The series is highly efficient with reduced power losses, making board thermal management easier.

Features and Benefits

Small, lightweight & universal input.
Input 85-265Vac, ideal for small systems and instrumentation applications worldwide.
Overvoltage/Overcurrent protection.
Plastic case complies to UL94V-0.
Conducted noise (EMI) VCCI-II and FCC-B (will meet VDE-B with external capacitor).

Typical Applications

Industrial.
Test & measurement.
Communications & Broadcast.

Note

MTBF to MIL-HDBK-217D.
Should not be run under sustained short circuit conditions.

Standards

IEC 950, EN60950

Approvals

TUV, UL recognised, CSA certified

Datasheet
