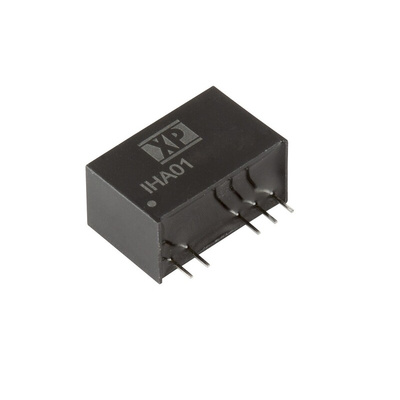

IHA0105D1509, XP Power IHA01 DC-DC Converter, -9V dc/ -55mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp, Преобразователь

XP Power Isolated DC-DC Converter - IHA Series

XP Power IHA01 Series of DC-DC Converters offers a highly isolated solution to a wide range of applications. IHA01 Series provides 250 V ac working voltage, with single and dual output options enabling installations into a wide variety of single phase environments.
The IHA01 Series has been designed with new and existing applications in mind. XP Power has been designed utilising the industry standard SIP7 Package, making the IHA01 Series suitable for new or existing upgrades.

Features and Benefits
High Isolation of 6000 V, with working voltage of 250V.
Offers single and dual output options.
Suitable for new and existing applications.
Utilises industry standard SIP 7 Package.
Wide operating range, with a full load of 85°C.
Suitable for use with MOSFET and IGBT Drives, thanks to bipolar outputs.
MTBF rating of 2.5 MHrs.

XP Power Isolated DC-DC Converters

Datasheet
