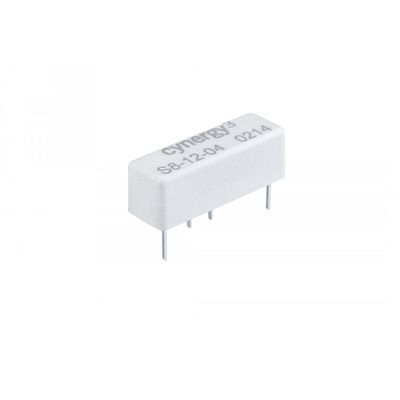

S8-0504V/RS, Sensata / Cynergy3 PCB Mount Reed Relay, 5V dc Coil, SPST, 1000V Max, 1 A Max, 120Ω, Реле

Sensata Cynergy3 Reed Relay, 5V DC Coil Voltage, 1A Switching Current - S8 Relay Series - S8-0504V/RS

Use this general-purpose relay from Sensata Cynergy3 to control reed switches on automated systems. This component works by creating a magnetic field close to the switch contacts to trigger a reaction on the equipment it's connected to. Its contacts are made of a rhodium material that's highly conductive and has low electrical resistance, ensuring a reliable connection. This device has a long mechanical service life of 1,000,000,000 operations in dry switching conditions, so it will last a long time. It's commonly used in industrial and commercial alarm systems to sense when doors are open or closed.

Features & Benefits

• Wide operating temperature range of -40ºC to +85ºC for use in demanding environments
• Nylon case material for resistance to impact and insulation from electric shock
• Compact dimensions of 30 (length) x 10 (depth) x 12mm (height) for use in tight spaces
• Isolation between the contacts and coil for improved electrical safety

What's the operating time of this reed relay?

This reed relay has a fast operating time of just 1ms to ensure speedy switching.

Cynergy3 - S8 relay series

S8 Series Mini High Voltage Relay Datasheet

Information Sheet - S8-0504V/RS
