S8-2405V/RS, Sensata / Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 1000V Max, 1 A Max, 1550Ω, Реле

Miniature high voltage relay

The Cynergy3 S8 series miniature high voltage reed relay is perfect for applications where space saving is a prime consideration. To give improved isolation between the high voltage contacts and the low voltage coil S8 miniature reed relays have the coil pins positioned near the centre of the relay while the contact pins are near the ends.

Space saving package
Isolation Voltage across contacts 4kV or 5kV (dependant on coil voltage)
Isolation Voltage 7kV contact to coil
2.5A carry current

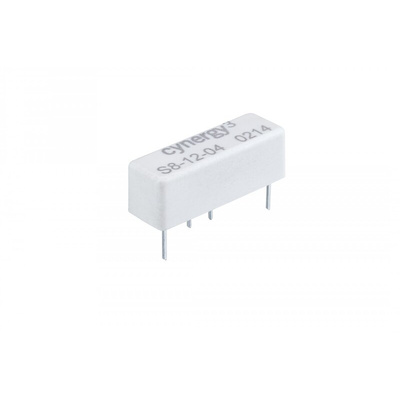

Sensata Cynergy3 Reed Relay, SPNO, 60mm - S8 Series - S8-2405V/RS

This S8 series reed relay from Sensata Cynergy3 electromagnetically controls a high-voltage reed switch. Its compact body is designed for easy installation in high-voltage applications where space is tight. The pin contacts are a standard shape and size for printed circuit boards (PCBs) and, once fitted, provide an airtight seal that stops dust from getting in. The rhodium contact material resists wear and corrosion and also withstands heat exposure. This keeps your relay in prime condition for longer.

Features & Benefits

• 10,000,000 electrical cycle lifespan for reliable use over a long lifespan
• Maximum positional isolation between high-voltage contacts and the low-voltage coil for efficiency
• Operates with a switching voltage of up to 1000V, so it's suitable for heavy-duty applications

Can I use this relay in extreme temperatures?

This Sensata Cynergy3 reed relay has a wide operating temperature range of -40°C to +85°C. This means you can rely on it to function efficiently in demanding industrial situations where extreme temperatures are likely.

What operating time can I expect from this relay?

The relay operates at a reliably rapid speed of 1ms, including bounce.

Cynergy3 - S8 relay series

S8 Series Mini High Voltage Relay Datasheet

Catalogue - Cynergy3 Reed Relays

Application Note - Reed Relays Application Notes
