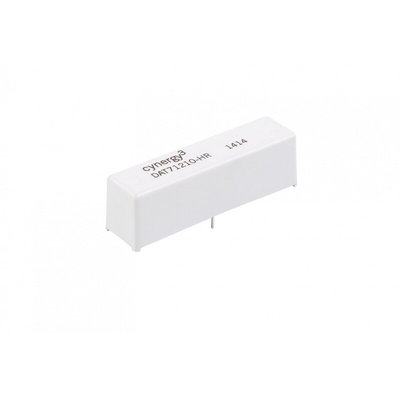

DAT71215-HR/RS, Sensata / Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SPST, 10000V Max, 2 A Max, 95Ω, Реле

Cynergy3 - Reed Relay D-HR Series

Cynergy3 reed relays have high isolation voltages. These are ideal for applications such as cardiac defibrillators, test equipment and high voltage power supplies.

Features and Benefits

Low contact resistance
10kV ot 15kV isolation
Minimum insulation resistance 1 x 10¹⁴ Ω
PCB or flying leads connections

Note

The rhodium contact relays have low contact resistance, the tungsten contact relays can switch to higher voltages.

Standards

ISO 9001

Sensata Cynergy3 Reed Relay, Tungsten Contacts, 2A Maximum Switching Current - D-HR Series - DAT71215-HR/RS

Reliably make and break a circuit on your PCB with this reed relay from Sensata Cynergy3. This device has highly conductive tungsten contacts, so it's capable of high switching voltages of up to 10,000V AC/DC for use in demanding applications. A fast operating time of 3ms means you get rapid results. This makes it well-suited for sensitive test and measurement applications, as well as for controlling medical devices such as defibrillators and spirometers.

Features & Benefits

• Wide operating temperature range between -20°C and +70°C for use in demanding environments
• Through-hole mounting pins make it simple to connect to your PCB
• Long lifespan of one million operations at 50W for long-lasting performance

What's the configuration of this reed relay?

This reed relay has an SPNO configuration. This means it controls one electrical circuit and the contacts are normally open, so it will close the circuit when activated.

How large is this reed relay?

This reed relay has compact dimensions of 60 (length) x 15.8 (width) x 18.5mm (height) to maximise space on your PCB.

Cynergy 3 - Reed Relay D-HR Series

D-HR HIGH INSULATION RESISTANCE, HIGH VOLTAGE RELAYS -5KV, 7.5KV,10KV & 15KV Series Datasheet
