S2-03PU/RS, Sensata / Cynergy3 PCB Mount Reed Relay, 3V dc Coil, SPST, 200V Max, 0.25 A Max, 250Ω, Реле

Cynergy3 S2 (UL) Series Reed Relay

The S2 (UL) reed relay series is designed for applications where PCB is not possible. Mounted in a series of positions the S2 (UL) can be orientated to suit. Flexible leadout wires allow bending for equipment assembly.

Features and Benefits

Variable mounting options
Reliable reed switch contacts

Standards

UL, ISO9001

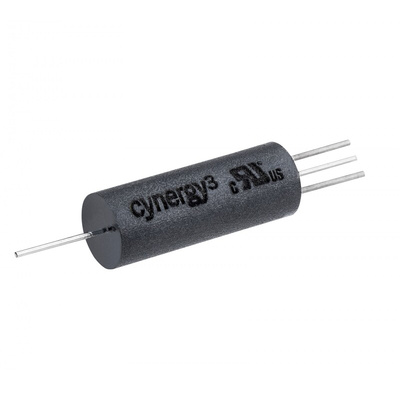

Sensata Cynergy3 Flexible Reed Relay, 3V DC Coil Voltage, SPNO - S2 Relay Series - S2-03PU/RS

Use this reed relay from Sensata Cynergy3 for reliable switching in your electrical circuit. It's designed for PCB (printed circuit board) mounting and has bendable pins for ease of connection in tight spaces. The device's compact dimensions of 7.62 (diameter) x 22.86mm (length) make it a good choice for use in areas where space is limited. It can also be mounted in a number of positions for enhanced versatility. Reed relays like this one are commonly used in medical equipment and testing applications.

Features & Benefits

• Wide operating temperature range of -40°C to +85°C for use in demanding environments
• Long lifespan of one billion dry operations for reliability and long-lasting performance
• Fast operating time of just 0.1ms for quick response times
• Maximum switching voltage of 140V AC (alternating current) or 200V DC (direct current) for use in general-purpose applications

What type of contacts does this reed relay have?

This reed relay has contacts made of highly conductive ruthenium, which allows for quick electrical energy conversion. Ruthenium is also resistant to wear, making it a durable choice.

Cynergy3 - S2 relay series
