S8-1204VU/RS, Sensata / Cynergy3 PCB Mount Reed Relay, 12V dc Coil, SPST, 1000V Max, 1 A Max, 750Ω, Реле

Miniature high voltage relay

The Cynergy3 S8 series miniature high voltage reed relay is perfect for applications where space saving is a prime consideration. To give improved isolation between the high voltage contacts and the low voltage coil S8 miniature reed relays have the coil pins positioned near the centre of the relay while the contact pins are near the ends.

Space saving package
Isolation Voltage across contacts 4kV or 5kV (dependant on coil voltage)
Isolation Voltage 7kV contact to coil
2.5A carry current

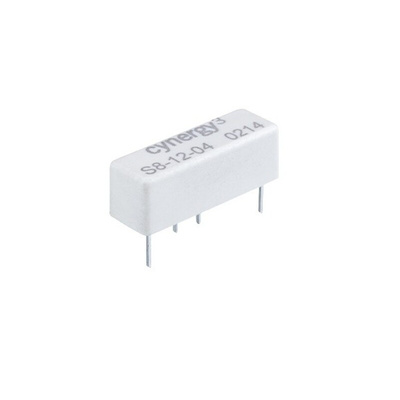

Sensata Cynergy3 Compact Reed Relay, 12V DC Coil Voltage, SPNO - S8 Relay Series - S8-1204VU/RS

This compact reed relay from Sensata Cynergy3 helps to increase the switching speed of your circuit. Its rhodium contacts are highly conductive and offer low electrical resistance for rapid transfer of electrical charge. As it has compact dimensions of 30 (length) x 10 (width) x 12mm (height), this miniature relay is ideal for circuits with limited space. For user safety and control, the device has a standard SPNO (single pole normally open) configuration. This ensures that contacts aren’t active and current won’t flow unless the switch is manually turned on.

Features & Benefits

• Wide operating temperature range of -40°C to +85°C for use in harsh environments
• PCB (printed circuit board) mounting style for simple integration into existing set-ups
• Long lifespan of one billion dry operations for long-lasting reliability
• Maximum switching voltage of 1000V AC/DC (alternating current/direct current) for use in high-voltage systems

How fast is this reed relay?

This reed relay has a fast operating time of 1ms, including bounce. This means that the reed relay reacts rapidly for quick and efficient control.

Cynergy3 - S8 relay series
