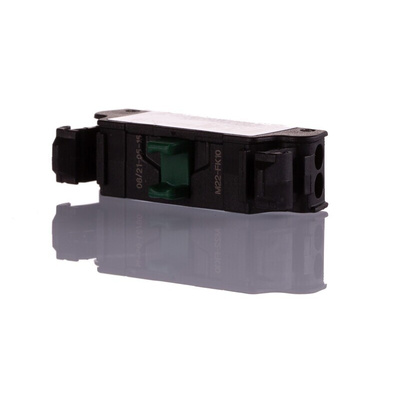

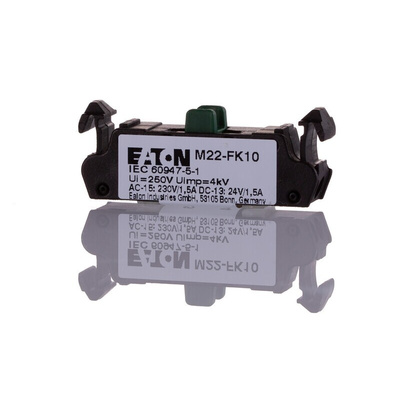

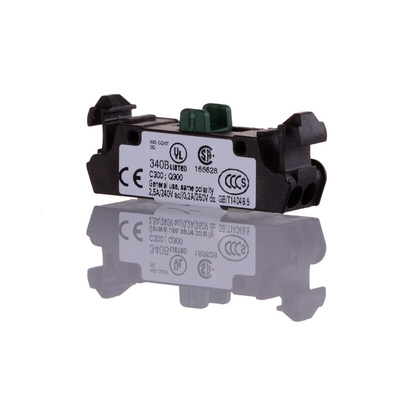

180792 M22-FK10, Eaton RMQ Titan M22 Series Contact Block, 24 V dc, 230V ac, 1NO

Eaton RMQ Titan Contact Block, 1.5A Current Rating, Insulated - 180792 M22-FK10

Switch your circuit on and off with this contact block from Eaton. It's an essential option for controlling the supply of electricity to devices like push buttons and control relays. Thanks to protection against overcurrent and short circuits, the unit minimises the risk of power faults damaging your equipment. As it's insulated, you're protected against electric shocks, while push-in terminals allow for simple wiring without tools, for quick and easy installation. Choose a terminal block like this for low-voltage motion control or lighting applications.

Features & Benefits

• Can be wired with solid or stranded conductors for versatility
• IP20-rated enclosure it touch-proof and protected against objects larger than 12mm
• Low actuating force of less than 4.5N, so needs minimal effort to function
• Meets IEC 60947-5-1 safety standards for low-voltage control circuit devices and switching elements

Is this contact block long-lasting?

This contact block has a mechanical lifespan of up to one million operations, so you can be sure of its long service life.

What's the operating temperature range of this contact block?

This device has a wide operating temperature range of -25°C to +70°C, meaning it's compatible with extreme conditions.

Note

Eaton formerly known as Moeller

Datasheet - Eaton M22-FK10

Instruction Sheet - RMQ Titan M22
