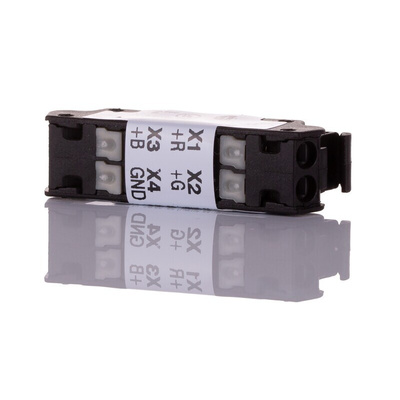

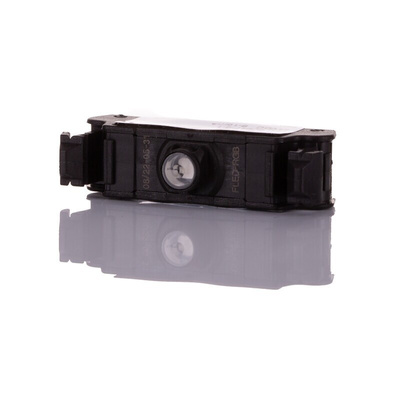

180800 M22-FLED-RGB, Eaton RMQ Titan M22 Series Light Block for Use with M22, 24V dc

Flat Compact LED Blocks

Eaton RMQ-Titan 22 mm range of flat compact LED blocks. The compact LED blocks provide greater flexibility and more space than standard RMQ LED elements. Designed to allow quick assembly of panel mount indicators and control components with a reduced mounting depth to less than 30 mm.

IP20 degree of ingress protection
Fixes to the rear of the actuator
Push-in tool-less terminals
Single, dual and multi colour options available

Eaton RMQ Titan LED Block, 24V DC Operational Voltage, 0.36W Power Consumption - RMQ-Titan / M22 Series - 180800 M22-FLED-RGB

Use this LED block from Eaton along with a contact block to illuminate industrial devices. Its push-in connection means it's quick and easy to install without the need for specialist tools, and it mounts to the rear of your actuator for use in applications where space is limited. A voltage rating of 24V DC makes this LED block a good choice for low-voltage applications. It has a withstand voltage of 4000V AC, which means your equipment is protected in the event of a power surge.

• Low power consumption of 0.36W for energy efficiency
• Mechanical lifespan of 100,000 hours for reliable use over long periods
• Multicoloured LED indicator lights for fast troubleshooting and maintenance
• IP20 rating means it's touch-proof and protected from objects larger than 12mm
• Compact dimensions of 38 (H) x 10mm (D) for use in settings where space is limited

What's the operating temperature range of this LED block?

This block has a broad operating temperature range of -25°C to +70°C, so it's suitable for use in harsh industrial settings.

Note

Eaton formerly known as Moeller
