1623239, Phoenix Contact 32 A Mode 3, Type 1, EV Charging Cable 4m, Разъем

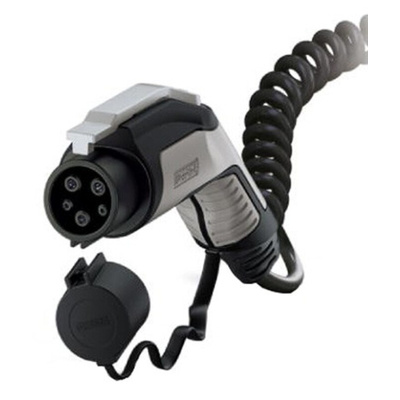

Mobile AC Charging Cable, Type 1, Single-Phase, U-Lock, Spiral Cable

From Phoenix Contact, this C-Line Single-Phase AC charging cable has a vehicle connector and an unterminated cable end. The alternating current (AC) cable is suitable for Type 1 vehicle inlets, and is for installation at charging stations for E-Mobility (EVSE.)

This AC Charging cable has a spiral TPE-U sheathed cable, with a robust plastic connector that features silver plated contacts, assuring a reliable connection.

The cable assembly also has attached connector plug cap which will protect the connector up to IP56, and has a locking option for U-Lock.

Type 1 EV connectors are a United States standard.

Features and Benefits

• Design Type: C-Line
• Type 1 Charging Standard
• Mode 3 Charging Mode
• AC Single-Phase charging current
• IEC 62196-2, SAE J1772, Standard
• Suitable for > 10,000 mating cycles.
• IP44 when mated

Phoenix Contact Electric Vehicle Connectors

1245217 Datasheet
