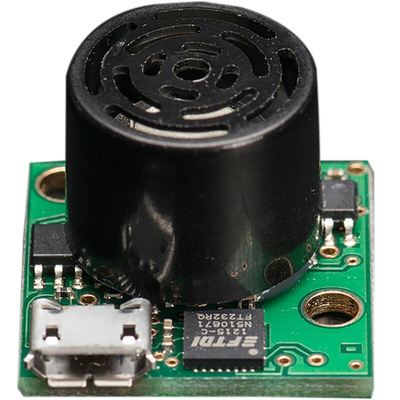

HRUSB-EZ1 MaxBotix Ultrasonic Rangefinder Sensor
The HRUSB-MaxSonar-EZ1™ module is an in-air, ultrasonic non-contact ranging sensor that detects objects within an area. It is not affected by the colour or other visual characteristics of the detected object. Ultrasonic sensors measure the time of flight for ultrasound that has been transmitted to and reflected back from nearby objects. Based on the time of flight, the sensor then outputs a range reading.\n
Basic Features
• Sensor frequency: 42kHz
• Distance measuring range: 300 to 5000mm
• Proximity sensing range: 1 to 5000mm
• Resolution: 1mm
• Continuously variable gain for control and side-lobe suppression
• Target size compensation
• Internal temperature compensation
• Free run operation continually measures and outputs range information
• Output format: Serial USB on micro-B connector
• Multiple sensors can be used in a single system
• Designed for protected indoor environments
• Powered from USB connection
• Dimensions: 21.92 x 22.56 x 15.5mm
• Applications: Mobile robot navigation, Collision avoidance, Security, Precision measurement
Sensors
