ADAFRUIT INDUSTRIES Adafruit 2478, TFT LCD Display 2.4in Resistive Touch Screen Display Module for MicroSD Socket - ILI9341

Adafruit 2.4 inch TFT LCD Touchscreen Breakout Board with microSD Socket

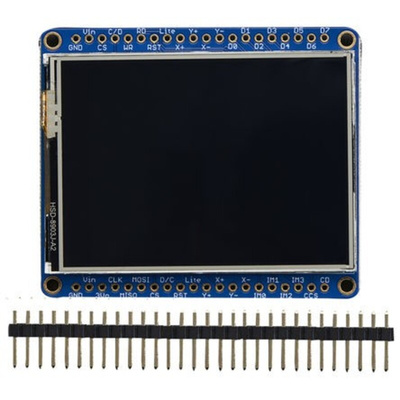

This colour 2.4” TFT display has 4 bright white LED backlight and 240 x 320 pixels with individual RGB pixel control. It has a resistive touchscreen to detect finger presses anywhere on the screen. The built-in controller has RAM buffering to take the workload away from the microcontroller. This display board has two modes: 8-bit and SPI.

When using 8-bit mode, you need 8 digital data lines and 4 or 5 digital control lines to read and write to the display.

SPI mode requires only 5 pins total (SPI data in, data out, clock, select, and dc) but is slower than 8-bit mode.

In addition, 4 pins are required for the touch screen (2 digital, 2 analogue).

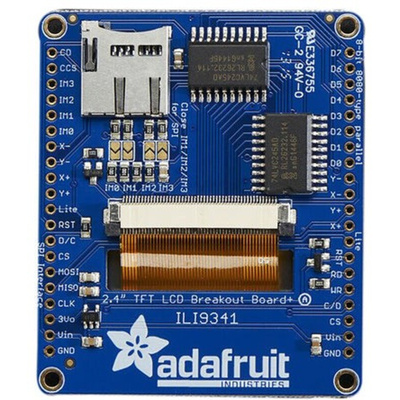

If you are using SPI mode, you can also take advantage of the on-board micro-SD card socket.

4 white LED backlight, transistor connected so you can use PWM to dim the backlight
4-wire resistive touchscreen
Screen Dimensions: 43 x 60 x 4 mm (1.7" x 2.4" x 0.16")
PCB Dimensions: 53 x 60 x 4 mm (2.1" x 2.4" x 0.16")
Weight: 30.5 g
