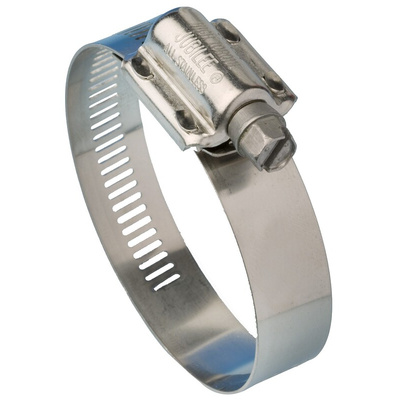

HT400, Jubilee Stainless Steel Slotted Screw Worm Drive, 16mm Band Width, 370 → 400mm ID, Хомут

Jubilee 304 High Torque Hose Clips

Jubilee 304 stainless steel high torque hose clips have a two part housing and cut through band.
The flexible high torque band offers better sealing at lower torques than nut and bolt style clamps.

Features and Benefits

Wide clamping range means that you can keep your stock levels lower
Breaking torque is 17 Nm comparable to conventional T bolt clips of equal size
Twice the tightening torque of standard worm drive hose clips

Typical Applications

Use the jubilee hi torque clips when you need a higher level of tightening torque.
Use for high vibration applications or for stubborn leaks.

Note

Refer to the datasheet for more information.

Standards

Conforms to SAE J1508 type HD

Datasheet

RSC001 Hose Clip Selection Guide (with flashes) FINALV3 (inc HT) (004)
