RS PRO 2 Way Female Feedthrough HDMI Connector, Разъем

RS Pro HDMI Feedthrough Connectors In XLR Shell

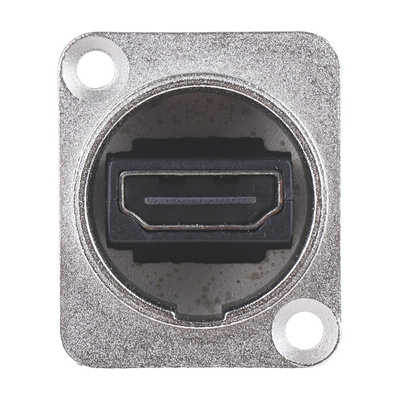

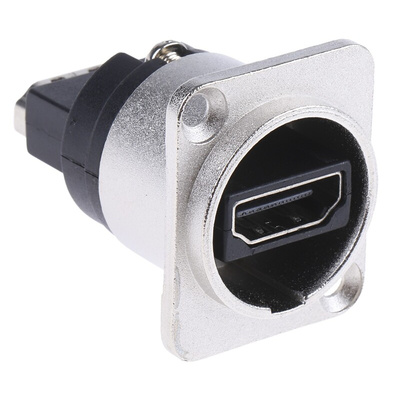

A range of RS Pro metal HDMI feedthrough connectors. The rugged HDMI A type connectors are housed in robust nickel plated zinc XLR shells with a universal 23.6 mm diameter panel cut out. The metal feed through connectors is suitable for front or rear panel mounting.

Features and Benefits

Rugged construction
Universal XLR panel cut out
No special tooling required
Front or back panel mounting

RS PRO 2 Way Female Feedthrough HDMI Connector

This HDMI (high-definition multimedia interface) connector, from the RS PRO range, is used for high-speed data transmission. HDMI connectors transfer high-speed A/V (audio/visual) signals between linked devices. Standard A-type connectors, like this one, are the most recognisable type of feedthrough HDMI connector.
As this female connector doesn't need any special installation, it's quick and easy to use. Suitable for front- or rear-panel mounting, it offers two-way feedthrough that permits two-way communication, making it ARC (audio return channel) compatible. This two-way communication means the connector works as both an input and an audio output. The connector has a universal 23.6 mm diameter panel cutout design. Its robust, nickel-plated zinc XLR (external line return) shell protects it for a long-lasting life.

HDMI connectors are commonly found in domestic or business appliances from smart TVs and gaming consoles to computer monitors.

Features and Benefits

• Two-way feedthrough connector for front- and rear-panel mounting
• Female connector
• Plug-in termination
• Straight body orientation
• 2 contacts
• Nickel and zinc housing for durability
• Universal 23.6 mm XLR panel cutout

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
