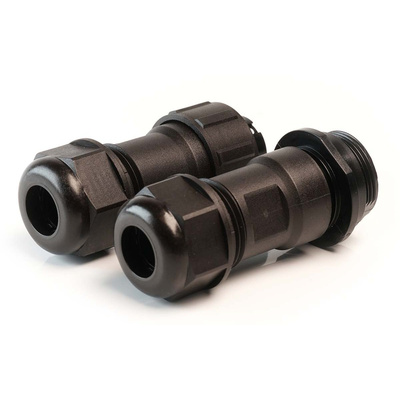

RS PRO Circular Connector, 3 Contacts, Cable Mount, Plug and Socket, Male and Female Contacts, IP68, Разъем

Cable Plug and InLine Socket Set 10A/5A Circular Connectors (Threaded) IP68

From RS Pro, these threaded plugs & sockets are serious contenders for your application. These particular models have bigger and stronger shells complimented by their cable to cable (inline) connection. That coupled with the IP68 rating, makes sure that these industrial connectors excel in harsh environments. When choosing a male & female connector set, these should really be the one you consider.

Features & Benefits

• Both Male and Female cable connectors are together as a set
• 2 way, 3 way and 4 way, all available
• Cable outer diameter 6-10 mm
• Panel Hole Cutout Size 17 mm
• High-quality Nylon66 shell
• Crimp Contact Termination

RS PRO Connector, 3 contacts Cable Mount Plug and Socket, Crimp IP68

RS PRO 3 contact connectors offer a reliable method to secure cable connections without the need for soldering. The plug and socket set achieves a tight fit and is ideal for cable-to-cable applications. Threaded mating on the connectors makes them quick to assemble and disassemble on site.

Encased in high-quality nylon 66 shells, these connectors can be used for wires of 6 mm to 10 mm in diameter. As they have an IP68 rating, the connectors are waterproof and the brass contacts are gold-plated for protection against rust and corrosion. Part of our RS PRO range, this product is strictly tested for adherence to quality and compliance with British and EU electrostatic discharge standards.

Crimp terminal connectors are a popular choice for industrial machinery or rail and automation applications that require high resistance to temperature changes, shock and vibration.

Features and Benefits

• Threaded male and female connector set
• Supports 6mm to 10 mm outer cable diameter
• 3 gold-plated brass contacts
• Current rating of 10 A
• Voltage rating of 500 V
• Brass contact material
• Gold contact plating
• Straight body orientation
• Crimp termination
• Operating temperature range from -25.0°C to 85°C
• Adheres to standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (handled and packaged in controlled environments that prevent damage due to electrostatic discharge)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

This product may be provided in an all-black or black and blue variant
