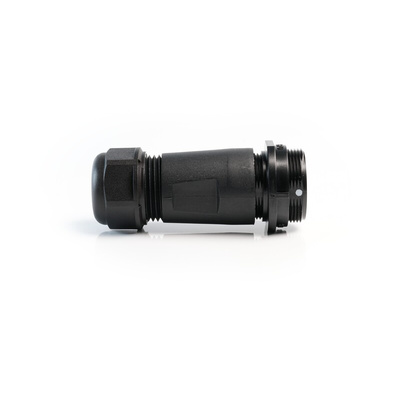

RS PRO Circular Connector, 3 Contacts, Cable Mount, Plug and Socket, Male and Female Contacts, IP68, Разъем

RS PRO Circular Connector, 3 Contacts Cable Mount Plug and Socket, Screw IP68

Looking for a quick and reliable way to secure wire connections? These RS PRO 3-position circular connectors are a versatile choice as they are designed for both cable-to-cable and cable-to-panel applications.

Threaded connectors achieve a secure electrical connection and are simple to assemble and disassemble in the field. The female housing has numbered receptacles to ensure no soldering errors. The circular connect is part of the RS PRO range and is stringently tested for durability. It is suitable for wire diameters of 7 mm to 12 mm and the panel hole size is 21 mm.

Supported by an IP68 rating, this waterproof and robust connector is reliable in dirty, dusty or sandy conditions and can withstand harsh environments including immersion in high-pressured water. These connectors are a popular choice for marine and automotive applications as the gold plating on the brass contacts guards against rust and corrosion.

Features and Benefits

• Waterproof IP68 rating guarantees protection against extended immersion under higher pressures
• Cable out diameter range of 7 mm to 12 mm
• Voltage rating of 500 V
• Current rating of 25 A
• Gold-plated brass contacts for corrosion resistance
• Threaded mating type
• Operating temperature range from -25°C to +85°C
• Polymer housing
• Screw termination
• Conforms to standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (handled and packed in controlled environments that prevent electrostatic damage)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

This product could be provided in either blue/black or and all black variant
