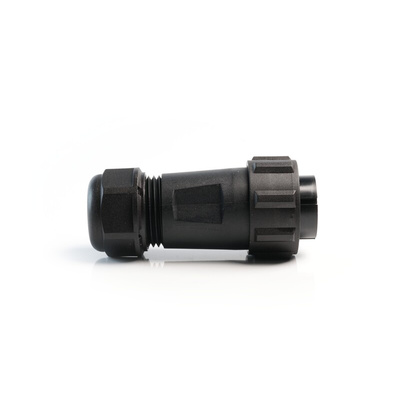

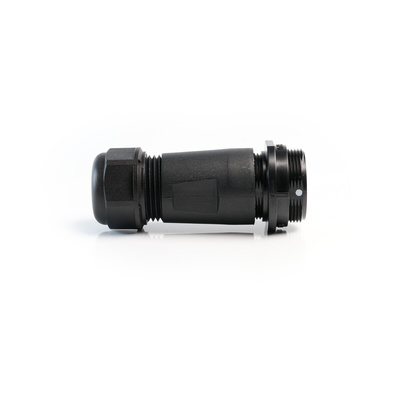

RS PRO Circular Connector, 5 Contacts, Cable Mount, Plug and Socket, Male and Female Contacts, IP68, Разъем

RS PRO Circular Connector, 5 Contacts Cable Mount Plug and Socket, Screw IP68

These versatile RS PRO 5-position circular connectors offer a quick and reliable way to secure wire connections for both cable-to-cable and cable-to-panel applications.

The connectors are easy to assemble and disassemble in the field as they are threaded, which also gives a tight electrical connection. This circular connector has a panel hole size of 21 mm and is suitable for wire diameters of 7 mm to 12 mm. Ensure no soldering errors with helpfully numbered receptacles on the female housing. This product is stringently tested for durability as it is part of the RS PRO range.

Do you need a waterproof component that can withstand harsh environments? The sturdy design of this connector is supported by an IP68 rating, which means it's reliable even in dirty, dusty or sandy conditions. To protect against rust and corrosion, these connectors have gold-plated brass contacts, which makes these connectors popular in marine and automotive applications.

Features and Benefits

• Cable out diameter range of 7 mm to 12 mm
• Waterproof IP68 rating guarantees protection against extended immersion under high pressure
• Gold-plated brass contacts for corrosion resistance
• Threaded mating type
• Operating temperature range from -25°C to +85°C
• 5 brass contacts
• Polymer housing
• Screw termination
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Note

This product could be provided in either blue/black or and all black variant
