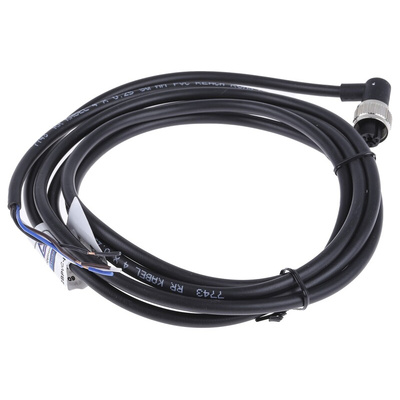

RS PRO Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

RS PRO Right-Angle M12 to Unterminated Connector and Cable, 4 Cores, 2 m

This RS PRO right-angled connector is designed for use in areas where space is an issue. It has durable brass contacts for high conductivity and gold plating for increased resistance to corrosion, making this an efficient and durable component.

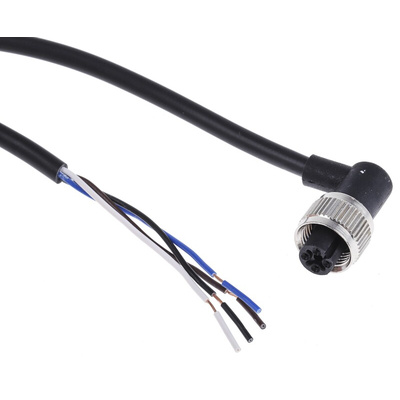

One end of the cable is left unterminated and partially stripped, allowing you to create a custom termination that fits your specific machinery and needs. The standard M12 end features a secure coupling nut to prevent the cable from coming loose and a neoprene O-ring to help it resist corrosion and vibrations.
This cable assembly has a polyvinyl chloride (PVC) sheath to protect it from chemical damage and mechanical wear. This keeps the cable performing well over a long product life, even in harsh conditions.

Features and Benefits

• American Wire Gauge size of 24 AWG
• Multicore cable shape
• Brass conductor material

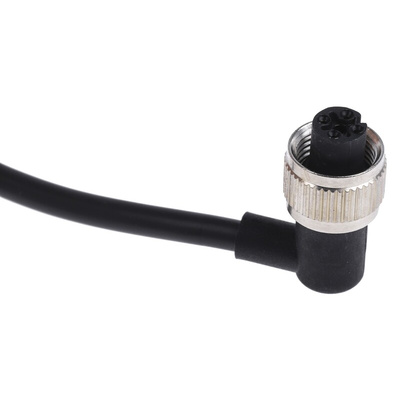

• Connector A is an M12 right-angle female socket
• Connector B is unterminated
• Four contacts
• Cross-sectional area of 0.25 mm²
• Current rating of 4 A
• Ingress Protection (IP) rating of IP67 (dust-tight and sealed against medium water jets)
• Length of 2 m
• Four cores
• Operating temperature range of -25°C to +75°C
• Outer diameter of 4.8 mm
• Polyvinyl chloride (PVC) outer sheath material
• Black sheath colour
• Polyurethane (PUR) sheath material
• Unshielded
• Voltage rating of 250 V
