CI064-4021-xxx 128x64 COG Graphic LCD Displays
The CI064-4021-xxx series from Intelligent Display Solutions (IDS) is a comprehensive range of LCD COG Graphic Modules. The available LCD modes and backlight options offered provide a large range of specifications to suit a wide variety of applications.
The process of integrating a CI064-4021-xxx LCD Module is simplified by development tools and assets available from IDS. Raspberry Pi and Arduino programming code, demos and a breakout board (IDB-CI064-4021-XX-01, RS part 1247540) are all offered to assist with rapid prototyping.
Features
128 x 64 dot format
Wide range of LCD mode and LED backlight options
Simple interface with 8 bit parallel or serial
Low-power operation
On-chip DC-DC converter
Internal contrast control
Built-in temperature compensation
Viewing direction: 6 o’clock
Driving scheme: 1/65 duty cycle, 1/9 bias
Amber Backlight Models
CI064-4021-29 - FFSTN Negative Transmissive - RS Part 1247536
CI064-4021-12 - FSTN Negative Transmissive - RS Part 1247522
CI064-4021-23 - STN Positive Yellow Transflective - RS Part 1247530
Blue Backlight Models
CI064-4021-28 - FFSTN Negative Transmissive - RS Part 1247535
CI064-4021-10 - FSTN Negative Transmissive - RS Part 1247520
CI064-4021-04 - FSTN Positive Transflective - RS Part 1247517
CI064-4021-22 - STN Positive Yellow Transflective - RS Part 1247529
Green Backlight Models
CI064-4021-27 - FFSTN Negative Transmissive - RS Part 1247534
CI064-4021-11 - FSTN Negative Transmissive - RS Part 1247521
CI064-4021-05 - FSTN Positive Transflective - RS Part 1247518
CI064-4021-21 - STN Positive Yellow Transflective - RS Part 1247528
Red Backlight Models
CI064-4021-13 - FSTN Negative Transmissive - RS Part 1247523
CI064-4021-14 - FSTN Positive Transflective - RS Part 1247524
CI064-4021-25 - STN Positive Yellow Transflective - RS Part 1247532
White Backlight Models
CI064-4021-01 - FFSTN Negative Transmissive - RS Part 1247514
CI064-4021-26 - FSTN Negative Transmissive - RS Part 1247533
CI064-4021-03 - FSTN Positive Transflective - RS Part 1247516
CI064-4021-02 - STN Negative Blue Transmissive - RS Part 1247515
CI064-4021-20 - STN Positive Yellow Transflective - RS Part 1247527
RGB Backlight Models
CI064-4021-30 - FFSTN Negative Transmissive - RS Part 1247537
CI064-4021-15A - FSTN Negative Transmissive - RS Part 1247525
CI064-4021-16A - FSTN Positive Transflective - RS Part 1247526

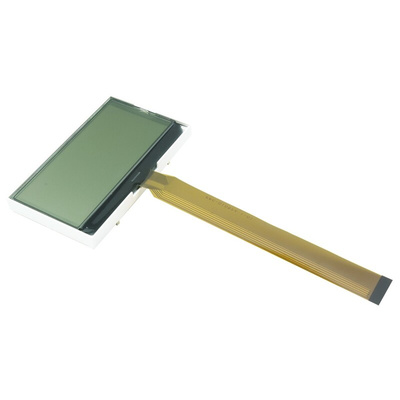

CI064-4021-24 - STN Positive Yellow Transflective - RS Part 1247531
Reflective Models
CI064-4021-31 - FSTN Positive Grey Reflective - RS Part 1247538
CI064-4021-32 - STN Positive Yellow Reflective - RS Part 1247539
IDS Graphic LCD Displays
