TMBS 150E, SKF Hand Bearing Puller, 35 → 150 mm Capacity, 10.2t Force, 14-Piece

SKF Hand Bearing Puller, 14 Pieces - TMBS150E

This SKF hand bearing back puller takes the effort out of bearing dismounting tasks, even in restricted spaces. It's been specially designed for applications requiring a long reach. The tool's hydraulic spindle allows you to apply force up to 100 kN with minimal effort, while the spring-loaded centre point makes alignment easy. A firm grip behind the bearing's inner ring reduces the force needed to dismount it. This unit is supplied with extension rods so you can quickly adapt your pulling lengths.

• 14-piece set
• Special separator design allows easy insertion
• Hydraulic force of 10.2 t
• Capacity of 35 mm to 150 mm
• Maximum bearing outer diameter of 215 mm
• Maximum reach of 120 mm to 816 mm
• Supplied with hydraulic spindle with a stroke of 80 mm

Application Information

• Automotive industries
• Food and beverage industries

What do I get in this 14-piece set?

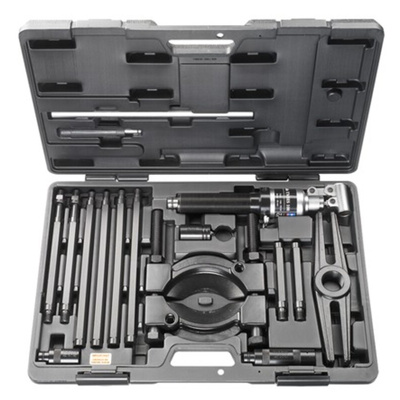

This puller set is supplied in a convenient carry case containing 1 separator set, 2 main rods, 2 x 125 mm extension rods, 4 x 285 mm extension rods, 1 beam, 1 hydraulic spindle, 2 spindle extension pieces and 1 spindle nosepiece.
