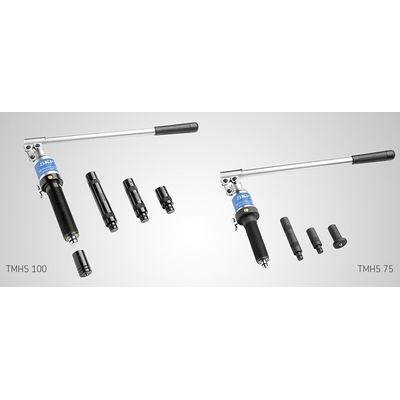

TMHS 100, SKF Hydraulic Bearing Puller

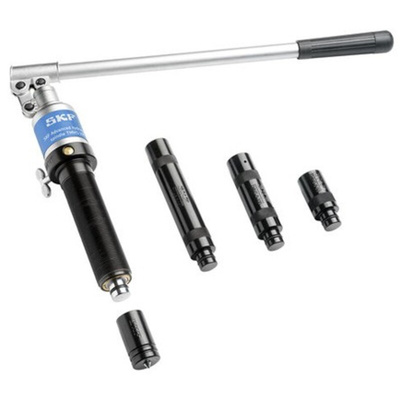

SKF Advanced Hydraulic Bearing Spindle, 100kN, 80mm - TMHS 100

Dismount bearings quickly and efficiently with this hydraulic spindle from SKF. It features a high pulling force for minimal operator effort, reducing time spent on bearing disassembly. A long stroke length of 80mm allows for one-step dismounting, while the lever's ability to rotate in a full circle makes it simpler to detach. There's no need to worry about applying too much force as the component includes a safety valve to stop you from overloading the spindle.

• Ergonomically designed lever handle for improved comfort and reduced fatigue during operation
• Includes three removable extension pieces for improved versatility and convenience
• High maximum withdrawal force of 100kN with a full reach of 390mm for ease of use
• Spring-loaded nose piece centre point allows for simple puller centring
• Light weight of 4.5kg for ease of handling

Applications

• Automotive industry
• Agricultural equipment
• High-speed cutting applications
• Pneumatic drives

When should I dismount a bearing?

Bearings need to be periodically dismounted for inspection or replacement. Regular maintenance contributes to the overall safety of a system and can also improve the expected lifespan of a bearing.
